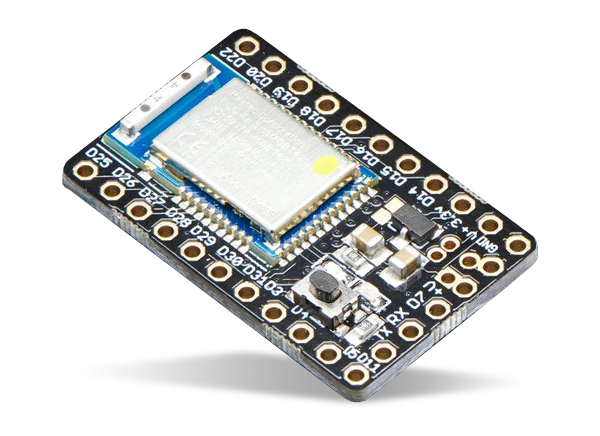

Adafruit Espruino MDBT42Q Breakout
Adafruit Espruino MDBT42Q Breakout is a Bluetooth-enabled, open-source, JavaScript-based module, mounted on a easily soldered board. The MDBT42Q Breakout features a Nordic Semiconductor nRF52 Series SoC (System on Chip), pre-programmed with Espruino, an open-source JavaScript interpreter for multiplatform microcontroller development. The integrated Espruino Module includes Bluetooth Low Energy (BLE), 64k of RAM, and 512k of Flash in a compact, low-power package. The MDBT42Q Breakout Board's 0.1" pin header offers 22 GPIO (capable of PWM, SPI, I2C, UART), with 7 analog inputs.
Features
- Nordic Semiconductor nRF52832
- 64MHz Arm Cortex M4
- 64kB RAM; 512kB Flash
- Bluetooth Low Energy
- Espruino JavaScript interpreter pre-installed
- 0.1" pin header
- 22x GPIO (PWM, SPI, I2C, UART), including 7 analog inputs
- Voltage input: 2.5V to 16V; 20uA power draw when advertising
- Red and Green LEDs
- Button
- Integrated temperature sensor
- NFC tag programmable from JavaScript (when an antenna is connected)
- Dimensions: 18mm x 28mm x 4mm
Videos
Related Products
Nordic Semiconductor nRF52 Series SoCs
Runs at 64MHz with a 215 EEMBC Coremark score, 90 Coremark/mA, 39µA/MHz (flash) and 30µA/MHz (RAM).

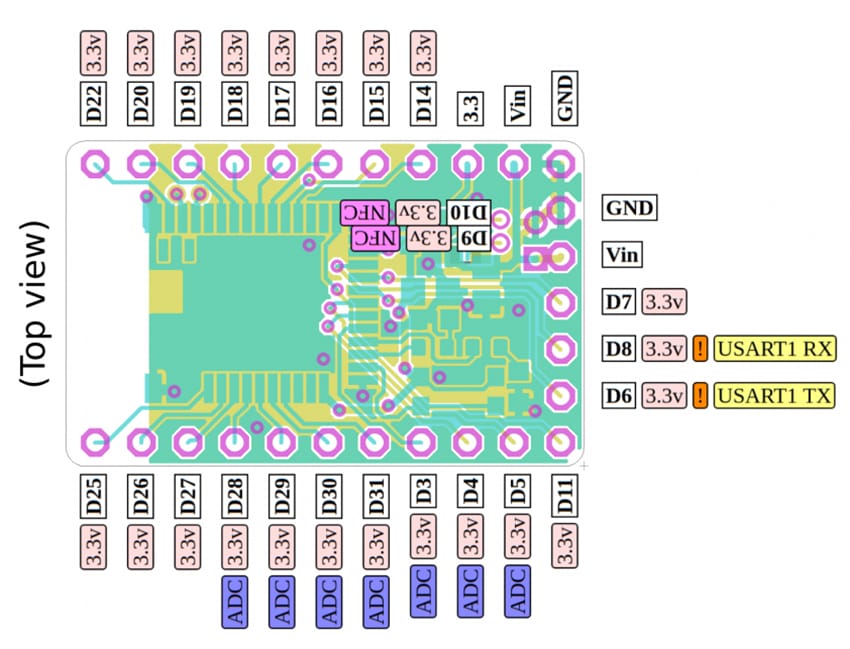

Pin Designations
Additional Resource
