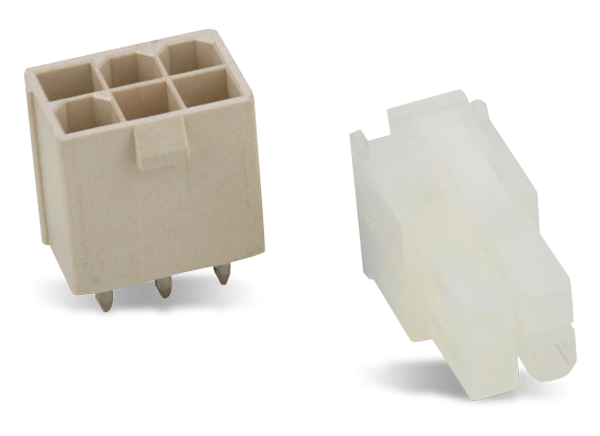

Amphenol Commercial G87 Mini Power 4.2 Connector System

Amphenol Commerical G87 Mini Power 4.2 Connector System offers positive housing locks that prevent accidental disconnects as well as polarized housing / receptacles that prevent accidental mismating. Other features include terminals that are fully isolated, contact area plating in tin and gold, and circuit sizes from 2 to 24. The 4.20mm pitch power connectors support a wire gauge range from 28AWG to 16AWG. Amphenol Commerical G87 Mini Power 4.2 Connector System is ideal for power applications up to 9A/circuit and high current and high-density applications.

Features

  • Compact power connector with current ratings of 9A per pin
  • 2 to 24 circuits for dual row
  • Terminations include boardlock (strong retention force), SMT, and through-hole
  • Scoop-proof housings prevent mismating between the header and the receptacle
  • Fully isolated pins protect contacts against potential damage during handling and mating
  • High-temperature NY9T and LCP housing meets UL 94V-0 and UL 94V-2
  • Certified by EIA and UL

Applications

  • Telecommunications
  • Drones
  • Data Center Server Storage
  • Industrial
  • Medical

Specifications

  • Mechanical
    • 15N max. per pin insertion force
    • 1N min. per pin extraction force
    • 4.5N min. contact retention force
  • Electrical
    • 9A current rating per contact
    • 10mΩ contact resistance
    • 600VAC voltage
  • Materials
    • High-temperature thermoplastic housing complies with UL 94V-0, black and natural options
    • Copper alloy contacts, selective gold plating on contact area, 100µ" tin-plated on soldering tail, 50µ" min. nickel under-plated overall
