AG5F

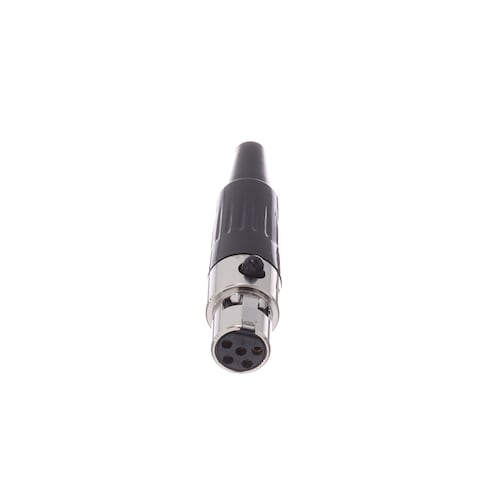

Name: Amphenol AG5F
Brand: Amphenol Audio
SKU: 523-AG5F
Price: 715.13 INR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-AG5F

Mfr. No:

AG5F

Mfr.:

Amphenol Audio

Description:

XLR Connectors 5 Pole Mini XLR Cable Connector G Type Female Stamped Contacts Nickel Finish

Datasheet:

AG5F Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio AG5F

In Stock: 784

Stock:: 784 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

₹-.--

Ext. Price:

₹-.--

Est. Tariff:

Pricing (INR)

Qty.	Unit Price	Ext. Price
	₹715.13	₹715.13
	₹658.53	₹6,585.30
	₹620.79	₹12,415.80
	₹601.03	₹30,051.50
	₹581.26	₹58,126.00
	₹538.14	₹1,07,628.00
	₹520.17	₹2,60,085.00
	₹503.10	₹5,03,100.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	XLR Connectors
RoHS:
Product:	Miniature XLR Connector
Standard:	Mini (Tiny) XLR
Number of Positions:	5 Position
Gender:	Female
Termination Style:	Solder Cup
Mounting Style:	Cable Mount
Contact Plating:	Gold
Orientation:	Straight
Series:	Mini XLR, G TYPE
Brand:	Amphenol Audio
Contact Material:	Brass
Current Rating:	4 A
Mating Cycles:	5000 Cycle
Packaging:	Bulk
Product Type:	XLR Connectors
Shell Plating:	Nickel
Factory Pack Quantity:	100
Subcategory:	Audio & Video Connectors
Voltage Rating:	50 V
Unit Weight:	13.500 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AG5F Datasheet (PDF)

Product Catalogs

Product Catalogs (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 85369099
BRHTS:: 85366990
ECCN:: EAR99

G-Type Miniature XLR Connectors

Amphenol Audio G-Type Miniature XLR Connectors offer 3-, 4-, 5-, and 6-pole variations and male and female connectors. These connectors are a miniature version of the standard XLR series and feature diecast or precision-machined metal housings. Miniature XLR connectors are designed with stamped socket contacts, a positive latch lock, a flexible cable grommet, and metal cable clamps. Amphenol Audio G-Type Miniature XLR Connectors are available with solder cup or printed circuit board (PCB) contacts.
