STM32U5A5AJH3

Name: STMicroelectronics STM32U5A5AJH3
Brand: STMicroelectronics
SKU: 511-STM32U5A5AJH3
Price: 1728.52 INR
Availability: InStock

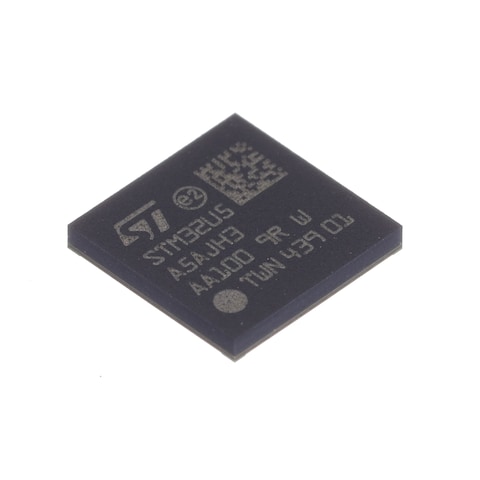

Images are for reference only
See Product Specifications

Mouser No:

511-STM32U5A5AJH3

Mfr. No:

STM32U5A5AJH3

Mfr.:

STMicroelectronics

Description:

ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M33 MCU TrustZone, 160 MHz 4 Mbytes Flash

Complete Your Design

Datasheet:

STM32U5A5AJH3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STM32U5A5AJH3

In Stock: 2,633

Stock:: 2,633 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

₹-.--

Ext. Price:

₹-.--

Est. Tariff:

Pricing (INR)

Qty.	Unit Price	Ext. Price
	₹1,728.52	₹1,728.52
	₹1,397.01	₹13,970.10
	₹1,339.51	₹33,487.75
	₹1,179.60	₹1,17,960.00
	₹1,016.09	₹2,54,022.50
	₹990.94	₹4,95,470.00
	₹981.05	₹9,81,050.00
2,496	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	ARM Microcontrollers - MCU
RoHS:
Series:	STM32U5
Mounting Style:	SMD/SMT
Package/Case:	TFBGA-169
Core:	ARM Cortex M33
Program Memory Size:	4 MB
Data Bus Width:	32 bit
ADC Resolution:	12 bit, 14 bit
Maximum Clock Frequency:	160 MHz
Number of I/Os:	8 I/O
Data RAM Size:	2.5 MB
Supply Voltage - Min:	1.71 V
Supply Voltage - Max:	3.6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tray
Analogue Supply Voltage:	1.58 V to 3.6 V
Brand:	STMicroelectronics
DAC Resolution:	12 bit
Data RAM Type:	SRAM
I/O Voltage:	1.08 V to 3.6 V
Interface Type:	CAN, I2C, LIN, SPI, UART, USART, USB
Moisture Sensitive:	Yes
Number of ADC Channels:	27 Channel
Number of Timers/Counters:	16 Timer
Operating Supply Voltage:	1.71 V to 3.6 V
Product:	ARM Microcontrollers
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	2496
Subcategory:	Microcontrollers - MCU
Tradename:	STM32
Watchdog Timers:	Watchdog Timer, Windowed

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STM32U5A5AJH3 Datasheet (PDF)

PCN

CAHTS:: 8542310000
USHTS:: 8542310025
TARIC:: 8542319000
ECCN:: 5A992.C

STM32U5 Series of Ultra-Low-Power MCUs

STMicroelectronics STM32U5 Series of Ultra-Low-Power MCUs are advanced power-saving microcontrollers based on the Arm® Cortex®-M33. The devices meet the most demanding power/performance requirements for smart applications. These applications include wearables, personal medical devices, home automation, and industrial sensors. The STM32U5 series of microcontrollers takes performance to the next level with up to 2Mbytes of Flash (dual bank) memory and 786Kbytes of SRAM. The STM32U5 is a large portfolio with 8 packages (from 48 to 169 pins) and supports up to 125°C ambient temperature.
