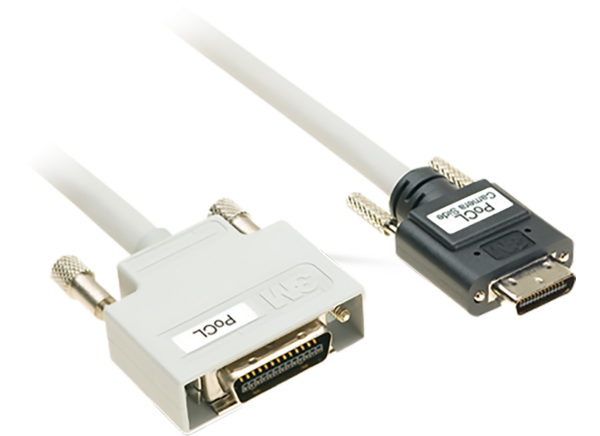

3M Connectors Power over Camera Link® Cable Assemblies
3M Power over Camera Link® (PoCL) Cable Assemblies carry power in addition to signal to enable use in base configuration Power over Camera Link applications. The 3M .80mm digital camera PoCL Cable Assemblies are available in a variety of cable lengths and mate to industry-standard Shrunk Delta Ribbon (SDR) 26-position PoCL camera connections.
Features
- Connects between Mini-Camera Link style (SDR) I/O ports on PoCL Cameras and Camera Link style (MDR) ports on PoCL frame grabbers
- Both straight and right angle cable exit available
- 3 shielded quads and 6 unshielded twisted pairs
- Entire cable bundle shielded with foil and braid for additional signal protection
- Rugged ribbon type contact for reliable, repeatable connectivity
- Thumbscrew retention
- EMI shielded end-to-end for reduced emissions
Applications
- Industrial Control
- Factory Automation
- Machine Vision
- 3M Digital Camera Cables are primarily used in machine vision applications for the connection between the camera and the frame grabber
- Use in other LVDS signaling applications is also possible.

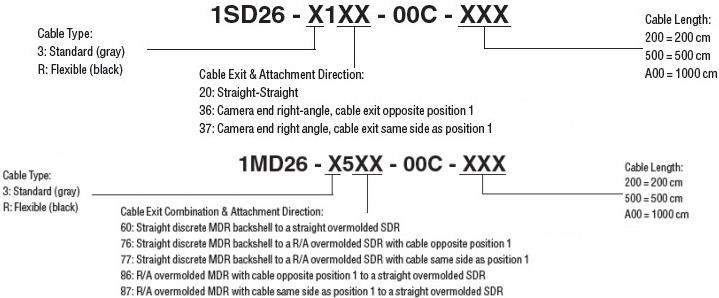

Ordering Information for 3M Power over Camera Parts
