Abracon ASAAIG Automotive & Industrial Crystal Oscillators

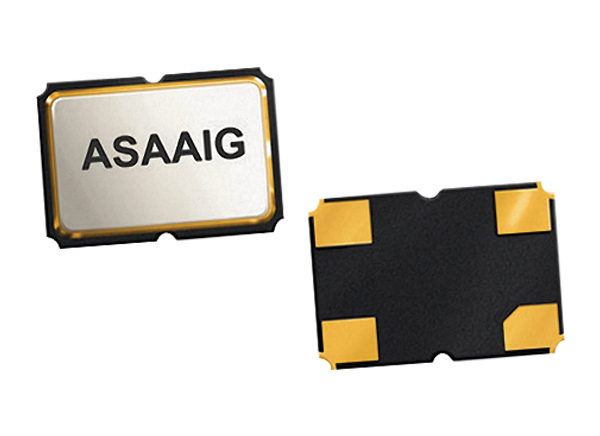

Abracon ASAAIG Automotive & Industrial Grade Miniature SMD Crystal Oscillators are AEC-Q200 qualified. The oscillators operate at a frequency range from 1.25MHz to 100MHz and overall frequency stability range from -150ppm to 150ppm. The ASAAIG crystal oscillators are available in seam-sealed ceramic packages that assure high precision and reliability. These SMD oscillators are available in low profile and a miniature size with 2.0mm x 1.6mm x 0.8mm dimensions. The crystal oscillators have an extended operating temperature range of -40°C to 125°C and are suitable for the RoHS reflow profile. These ASAAIG crystal oscillators are ideal for automotive and industrial electronics.
Features
- AEC-Q200-qualified
- Automotive-grade 1: -40°C to +125°C
- TS16949 production line certified
- PPAP available upon request
- Hermetically seam-sealed ceramic package
- RoHS/RoHS II-compliant and Pb free
Applications
- Infotainment systems
- Keyless entry & startup
- GPS & navigation
- Comfort control
- ADAS (Advanced Driver Assistance Systems)
- Vehicle-to-vehicle communication
- LiDAR (Light detection and ranging)
- In-vehicle networking
- Powertrain & drive control
- Power control & conversion
- Industrial control & automation

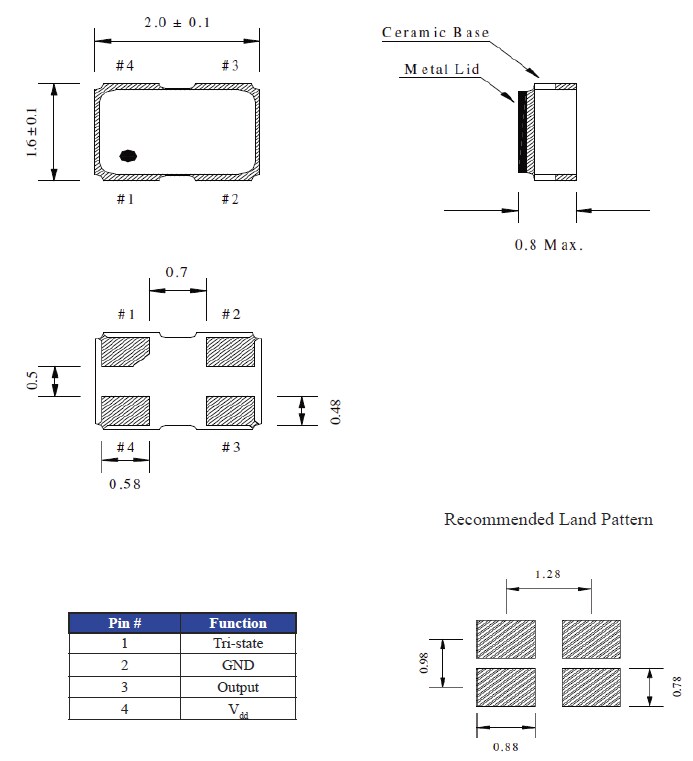

Dimensions
Published: 2020-01-08
| Updated: 2022-03-10
