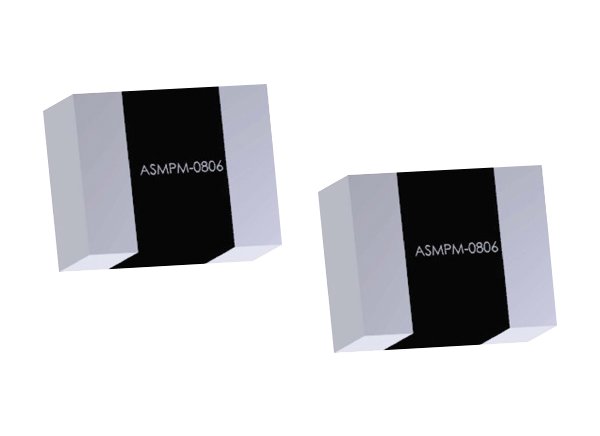

Abracon ASMPM High Power Chip Inductors
Abracon ASMPM High Power Chip Inductors offer 2mm x 1.6mm x 1mm dimensions and shielded construction that reduces EMI. These miniature ceramic chip inductors have a 0.47µH to 4.7µH inductance range, up to ±20% tolerance, and 360mΩ maximum DC resistance. Abracon ASMPM High Power Chip Inductors are ideal for wearables, medical monitoring, battery-operated devices, smartwatches, and IoT applications.
Features
- Miniature ceramic chip inductors
- Shielded construction that reduces EMI
- High current carrying capability
- Low profile
- Compact footprint
Applications
- Iot and IIoT
- Wearables
- Smartwatches
- Hand-held devices
- Audio/video, cameras, and speakers
- Drones
- Medical monitoring
- Compact energy-efficient lighting
- Battery operated devices
- DC/DC supplies for BLUETOOTH® and RF modules
- High-efficiency battery chargers
- High-efficiency switch-mode power supplies
Specifications
- 2mm x 1.6mm x 1mm dimensions
- 4.5A typical saturation current
- 4.7µH maximum inductance rating
- -40°C to +125°C operating temperature range
Published: 2021-05-10
| Updated: 2023-09-11
