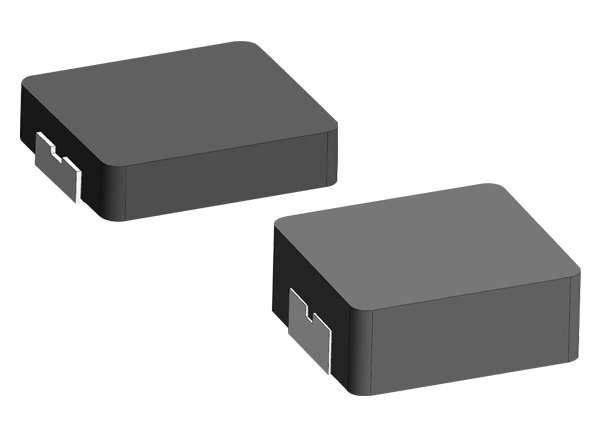

Abracon Automotive-Grade Molded Power Inductors
Abracon Automotive-Grade Molded Power Inductors are designed to meet the needs of the most challenging design-constraint applications in the automotive, industrial, and medical markets. Abracon Automotive-Grade Molded Power Inductors are designed to meet AEC-Q200 reliability test conditions and are manufactured on IATF-16949 certified production lines. The inductors come in several different package sizes and materials to meet a variety of power, inductance, and operating temperature requirements. Each inductor series demonstrates EMI shielding features to prevent interference and disruption to neighboring circuitry. These inductors service most high-reliability DC/DC conversion topologies with superior power densities and efficiencies.
Features
- Round wire metal alloy
- High operating temperature up to +155°C
- DC resistance optimized with round wire
- Wide range of package sizes for variety of applications
- Highly effective shielding through molded construction
- Round wire carbonyl powder
- Operating temperature up to +125°C
- Saturation current optimized with round wire
- Wide range of package sizes for variety of applications
- Highly effective shielding through molded construction
Applications
- Automotive
- Industrial
- Medical
Round Wire Metal Alloy Series
AMDLA4012Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 5MHz frequencies, 4.4mm length x 4.0mm width x 1.2mm height.
AMDLA4020Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 5MHz frequencies, 4.4mm length x 4.0mm width x 1.8mm height.
AMDLA4530Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 2MHz frequencies, 4.9mm length x 4.7mm width x 3.0mm height.
AMDLA7030Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 2MHz frequencies, 7.3mm length x 6.6mm width x 3.0mm height.
Round Wire Carbonyl Powder Series
AMPLA5030Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 2MHz switching frequencies, 5.7mm length x 5.2mm width x 3.0mm height.
AMPLA7030Q - AEC-Q200 qualified, shielded construction, designed for 100KHz to 2MHz switching frequencies, 7.3mm length x 6.6mm width x 3.0mm height.
