ADLINK Technology cExpress-AL COM Express® Modules

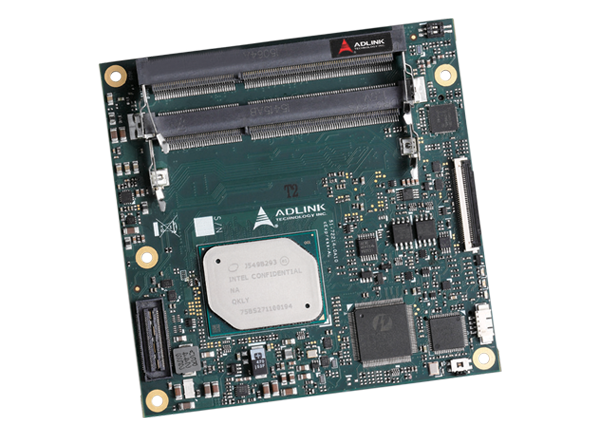

ADLINK Technology cExpress-AL COM Express® Modules are Type-6 modules that are designed for optimal processing and graphics performance with low power consumption. These modules support IEEE 1588 Precision Time Protocol (PTP) and provide non-ECC type DDR3L dual-channel memory for excellent overall performance. The cExpress-AL modules are equipped with SPI AMI EFI BIOS that supports embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer. These compact size modules operate at -40°C to 85°C  temperature range and are available in a 95mm x 95mm dimension.

Features

  • Support IEEE 1588 Precision Time Protocol (PTP)
  • Up to 8GB dual-channel non-ECC DDR3L at 1867MHz/1600MHz
  • Up to five PCIe x1 Gen2 (by PCIe bridge IC, build option)
  • -40°C to 85°C operating temperature range
  • Two DDI channels, one LVDS (VGA/eDP by build option)
  • Support up to 3 independent displays
  • Two SATA 6Gb/s, three USB 3.0/2.0, five USB 2.0, and eMMC 5.0 (build option)

Specifications

  • Single/dual channel 18/24-bit LVDS from eDP-to-LVDS IC
  • Intel® HD audio integrated into SoC
  • Dual-channel 1867/1600 MHz non-ECC DDR3L memory up to 8GB in dual SODIMM socket
  • 4 lanes support (build option, in place of LVDS)
  • OpenGL 4.3 and ES 3.0 support
  • On carrier Express-BASE6 (ALC886 standard support)
  • AMI EFI with CMOS backup in 16MB SPI BIOS (dual BIOS by build option)
  • DirectX 12, DirectX 11.3, DirectX 10, and DirectX 9.3 support

Block Diagram

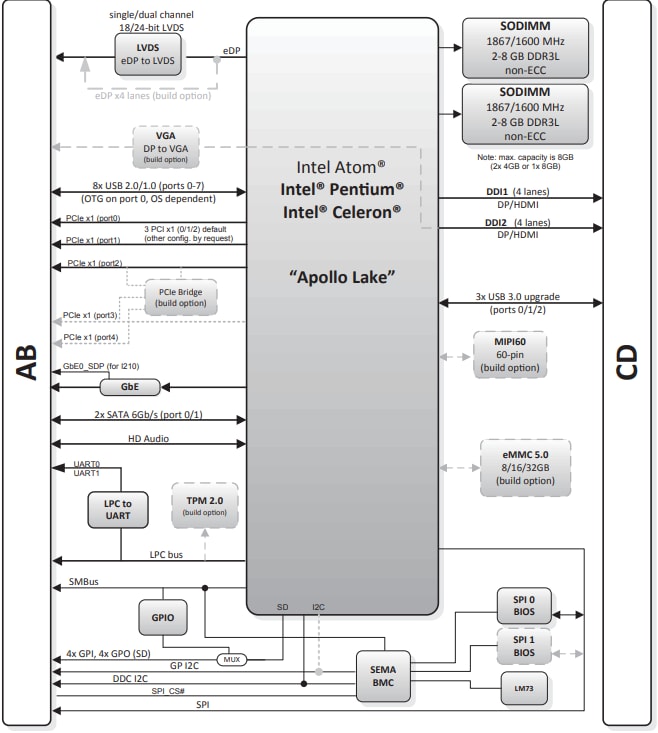

Block Diagram - ADLINK Technology cExpress-AL COM Express® Modules
