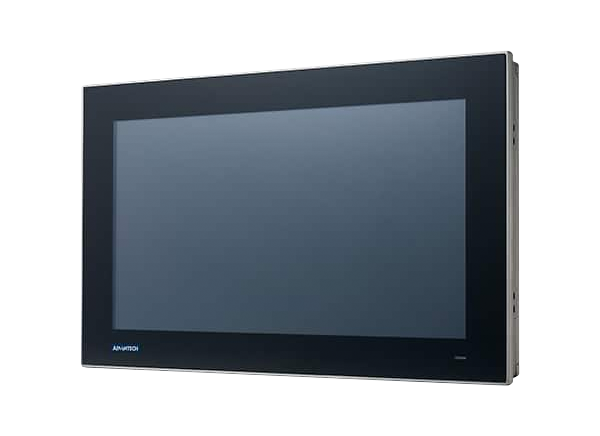

Advantech FPM-200 Industrial Monitors

Advantech FPM-200 Industrial Monitors feature sleek, simple lines and a true-flat touchscreen with an IP66-rated aluminum alloy front bezel. These rugged displays offer an industrial-grade design that withstands operation in a wide range of industrial environments. The anti-glare screen utilizes tempered glass, and the PCAP touch control is durable yet enables simple intuitive operation. These monitors incorporate a 16:9 widescreen and slim design while supporting various operating systems. Advantech FPM-200 Industrial Monitors feature direct HDMI, DP, and VGA input interfaces and several mounting options - panel, wall, desktop, and VESA arm. The series is suitable for intuitive operation in industrial environments such as smart factories and machine automation displays.


  • 12" XGA / 17" SXGA TFT LED LCD with 50,000 backlight lifetime
  • 15" XGA TFT LED LCD with 70,000 backlight lifetime
  • Input interfaces
    • Direct High-Definition Multimedia Interface (HDMI)
    • DisplayPort (DP)
    • Video Graphics Array (VGA)
  • Anti-glare screen with tempered glass
  • Robust system with die-cast aluminum chassis
  • IP66-rated aluminum alloy front bezel
  • Lockable I/O connectors
  • Slim design for easy installation
  • Support various mount options
    • Panel
    • Wall
    • Desktop
    • VESA arm


  • Machine control
  • Process automation
  • Shop floor monitoring
  • eSOP workstation
  • Control rooms
  • Warehouse management


  • 15W+20% power consumption
  • BSMI, CCC, CE, FCC Class A, and UL certifications
  • Touch screen
    • USB interface
    • 5-wire analog resistive type
    • Above 75% light transmission
    • Windows XP, Vista,7, 8,10, XPe, and Linux operating system support
  • LCD display
    • XGA/XGA/SXGA TFT LCD display
    • 12", 15", and 17" display sizes
    • 1024 x 768 / 1024 x 768 / 1280 x 1024 maximum resolutions
    • 0°C to +50°C operating temperature range
    • IP66 graded front panel

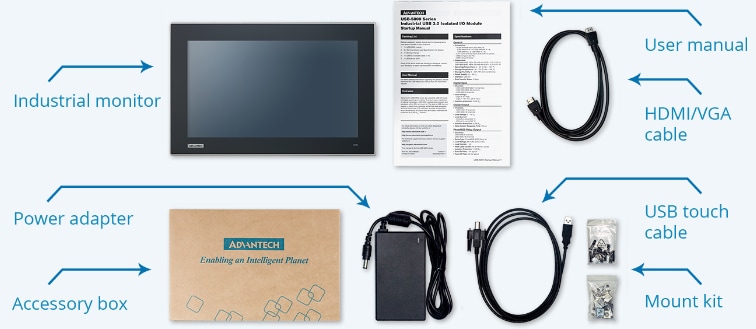

Kit Contents

Advantech FPM-200 Industrial Monitors

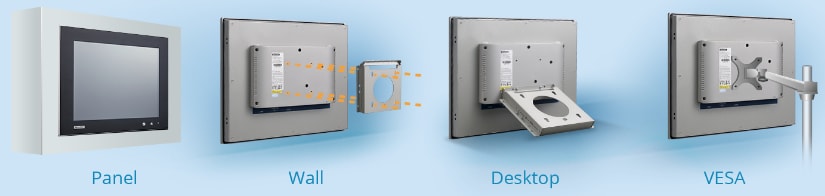

Mounting Options

Advantech FPM-200 Industrial Monitors


Published: 2020-10-13 | Updated: 2022-03-11
