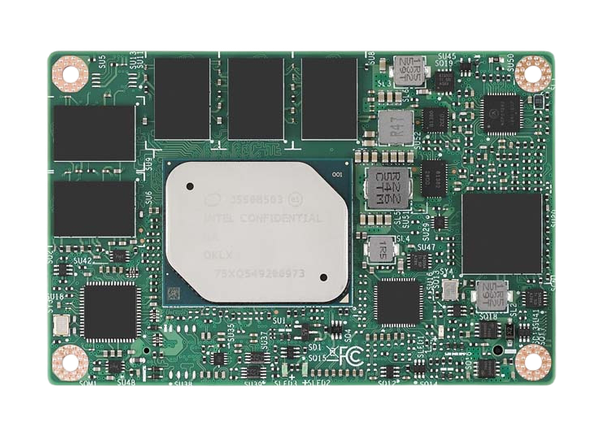

Advantech SOM-7569 COM-Express Mini Module

Advantech SOM-7569 COM-Express Mini Module is a COM R.2.1 Type 10 Mini Module with an Intel® Atom™ E3900 & Pentium®/Celeron® Processor. The board has a max 8GB DDR3L onboard memory. It has a dual display with support for LVDS, HDMI/DisplayPort.

Features

  • COM R.2.1 Type 10 Mini Module
  • Intel® Atom™ E3900 & Pentium® / Celeron® Processor
  • Max 8GB DDR3L onboard memory (support ECC, E3900 SKU only)
  • Dual Display: LVDS, HDMI/DisplayPort
  • Onboard eMMC(default 32GB), TPM2.0
  • Supports H.264/AVC, H.265/HEVC, VP9, VP8 HW DECODE
  • Supports Wide-range operating temp./Wide range power input 4.75 ~ 20V
  • iManager and Embedded Software APIs

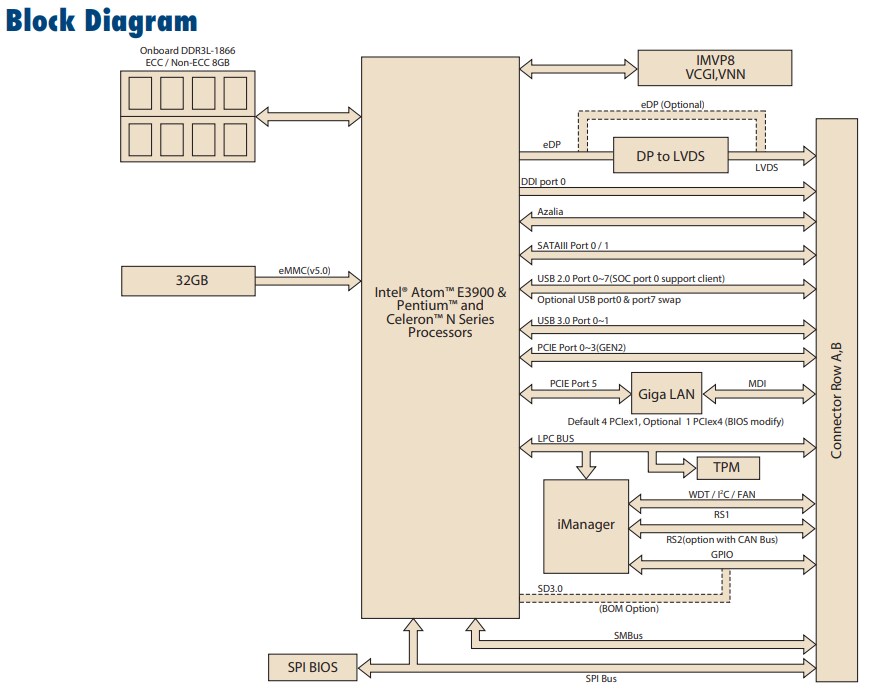

Block Diagram

Advantech SOM-7569 COM-Express Mini Module

Videos

Published: 2021-10-04 | Updated: 2023-06-19
