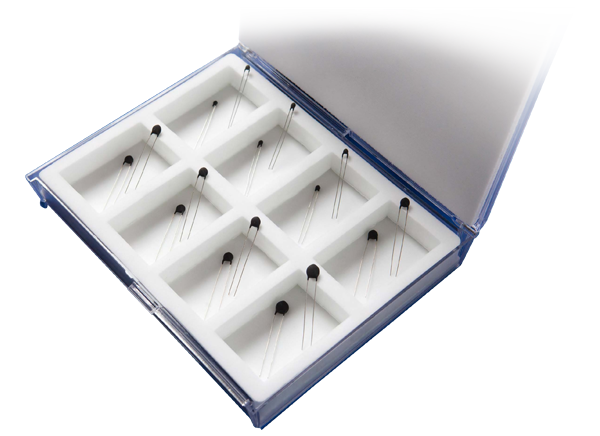

Ametherm Sample Kits

Ametherm Sample Kits allow designers and engineers to test a range of Ametherm's most popular products. Users can quickly find the right part to provide reliable circuit protection and accurate temperature compensation and measurement in their applications. Four Ametherm Sample Kits are available: Standard, Mega, Mini, and Sensor.

Mini Kit

Features 8 values, 2 each inrush current limiters from the Mini SL series. Resistance values at 25°C of 10Ω-120Ω, diameters from 3mm to 8mm, and steady-state current from 1.0A to 2.0A.

Kit Contents

View Mini Kit

Standard Kit

Offers 9 values, 2 each, inrush current limiters from the SL series. Resistance values at 25°C of 10Ω, diameters from 3mm to 32mm, and steady-state current from 1.0A to 15.0A.

Kit Contents

View Standard Kit

Mega Surge Kit

Provides 5 values, 2 each inrush current limiters from the MegaSurge™ series. The devices offer diameters from 14mm to 37mm, up to 500 J of input energy, steady-state current to 18A, and resistance values at 25°C of 10Ω, 30Ω, and 150Ω.

Kit Contents

View Mega Surge Kit

Sensor Kit

Features resistance values at 25°C from 10kΩ to 100kΩ and beta of 3,950K and 4500K, the thermal time constant down to 10s and a maximum power of 125mW.

Kit Contents

View Sensor Kit
