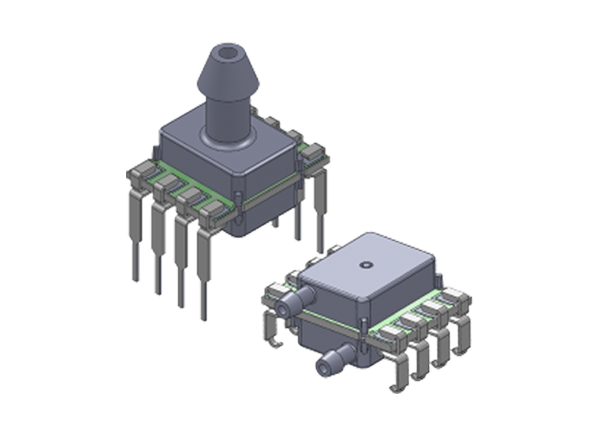

Amphenol All Sensors ELV Analog & Digital Pressure Sensors
Amphenol All Sensors (AAS) ELV Analog and Digital Pressure Sensors feature ultra-low pressure CoBeam2™ technology, an innovative sensing-element technology that provides stability for low and ultra-low pressure ranges. These sensors also offer the ability to customize calibrations and pressure ranges. The digital interface eases the integration of the sensors into a variety of process control and measurement systems, allowing direct connection to serial communications channels. These calibrated and compensated sensors provide accurate, stable output over a wide temperature range (-25°C to +85°C). AAS ELV Analog and Digital Pressure Sensors are intended for use with non-corrosive, non-ionic working fluids such as air and other dry gases. A protective parylene coating is optionally available for moisture/harsh media protection.
Features
- Pressure ranges from ±0.5 in H2O to 150psi and ±2.5mbar to ±10bar
- Precision ASIC conditioning
- Digital I2C or SPI interface or analog-only options
- 3V, 3.3V, and 5V supply voltage options
Applications
- Medical devices
- Medical instrumentation
- Respiratory
- Portable / handheld equipment
- Environmental controls
- Environmental instrumentation
- Environmental monitoring
- HVAC
- Industrial controls
- Altimeters
- Chemical analysis
- Meteorology
Specifications
- 2.7VDC to 5.5VDC supply voltage
- Compensated temperature range
- 0°C to +50°C (standard)
- -20°C to +85°C (industrial)
- -25°C to +85°C operating temperature range
- +245°C maximum device temperature
- 0% to 95% RH humidity limits (non-condensing)
Videos

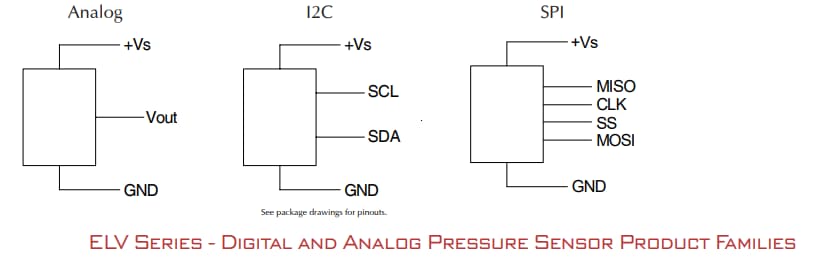

Equivalent Circuit
