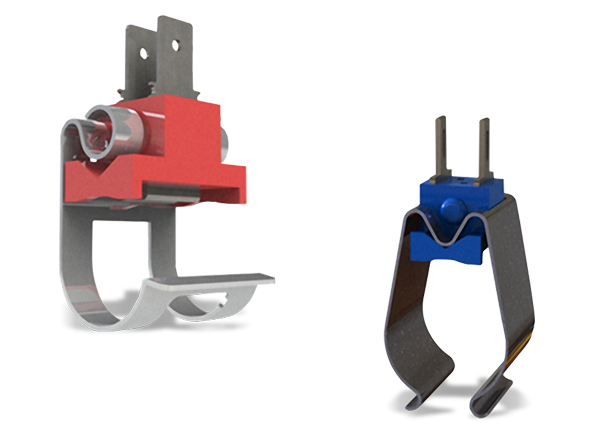

Amphenol Advanced Sensors JC & JW Clip-On Pipe Temperature Sensors
Amphenol Advanced Sensors JC and JW Clip-On Pipe Temperature Sensors provide a non-intrusive solution for measuring surface temperature. These devices feature a fast time response (<=1s) and a low-temperature gradient (<1°C at 60°C). Both series include a range of clip sizes to fit pipe diameters from 13mm to 30mm. Amphenol Advanced Sensors JC and JW Clip-On Pipe Temperature Sensors are suitable for use in gas boiler controls, home water systems, air conditioners, radiator inlets and outlets, vending machines, and electric showers.
Features
- Suitable for use in conditions of high condensation and occasional immersion in water
- Low temperature gradient
- Sensing element electrically isolated from shoe
- 13mm to 30mm range of clips for pipe diameters
- Self-adjusts to irregular pipe surfaces
- Offers cost benefits over traditional immersion probes
- Fast response time
- Type JW meets IP46 standard
- Type JC meets IP44 standard
Applications
- Gas boiler control
- Home water systems
- Air conditioners
- Radiator inlets and outlets
- Vending machines
- Electric showers
Specifications
- 0°C to +100°C operating temperature range
- ≥2mW/K dissipation factor
- 500VDC isolation voltage
- Plated brass shoe material
- Nylon body material
