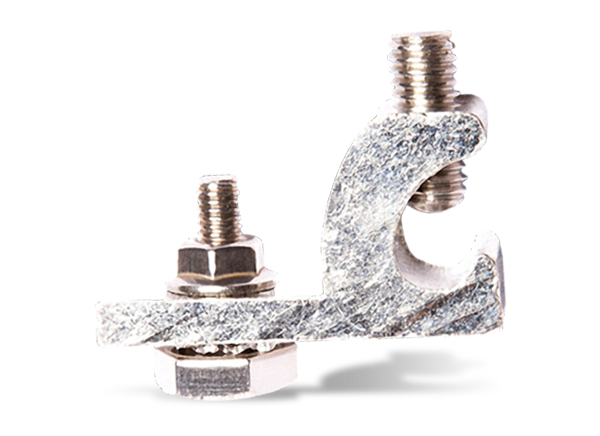

Amphenol Industrial Helios HelioLug is a grounding component for solar modules and racking systems and provides easy termination to the ground wire. It is UL 2703 certified for use with a ground wire, eliminating potential issues with code compliance. HelioLug is suitable for use with virtually all module frames and racks with a thickness of 2mm to 6.35mm and compatible with all module grounding holes of 4mm to 7.5mm. It accepts 12AWG to 4AWG solid copper conductors and is compliant with all NEC 2008/2011 requirements. Amphenol Industrial Helios HelioLug is offered with all of the certified reusable hardware needed for making rapid, secure connections to PV modules and racks. Included components include a lay-in lug, stainless star washer, stainless steel bolt, and stainless serrated lock nut.
UL 2703-certified grounding lug
Meets all NEC 2008/2011 requirements
Quick and easy installation
For use with virtually all module frames and racks with a thickness of 2mm to 6.35mm
Compatible with all module grounding holes of 4mm to 7.5mm
Accepts 12AWG to 4AWG solid copper conductors
Code compliant "first make-last break" grounding system
Certified reusable hardware for servicing without replacement
