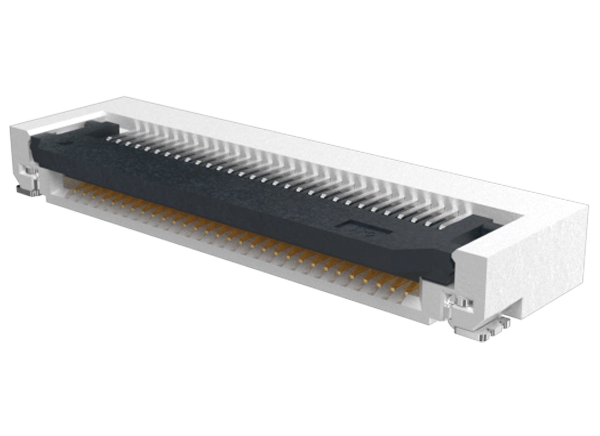

Amphenol Aorora 0.50mm FFC/FPC Connectors feature a 1.00mm to 5.80mm height range and 4 to 80 positions to fit a variety of design requirements. These vertical and right-angle connectors provide a 0.5A current rating, 100MΩ or 500MΩ min. insulation resistance, and an operating temperature range of -55°C or -40°C to +85°C or +105°C. Amphenol Aorora 0.50mm connectors offer strong, vibration-proof FFC/FPC retention and high-temperature thermoplastic housing. The design resists solder and flux wicking and ensures high solderability. The surface-mount connectors are well-suited for automotive, data, industrial, communication, consumer, and medical applications.
Strong, vibration-proof FFC/FPC retention
High-temperature thermoplastic housing
4 to 80 positions available for a variety of design requirements
Durability of 20 or 30 mating cycles, depending on connector type
Meets environmental, health, and safety requirements
Zero Insertion Force (ZIF) mechanism
No frictional mating wear
High mating cycle life
LCD and PDP TVs
Routers and servers
Human Machine Interface
MRI and CT
1.00mm to 5.80mm height range
-55°C or -40°C to +85°C or +105°C operating temperature range
50VAC/50VDC voltage rating
0.5A current rating
100MΩ or 500MΩ min. insulation resistance
Dielectric withstanding voltage
F31L/F308/F332: No short or breakdown after 500VAC, 2mA, 1min.
F331: No short or breakdown after 250VAC, 2mA, 1min.
