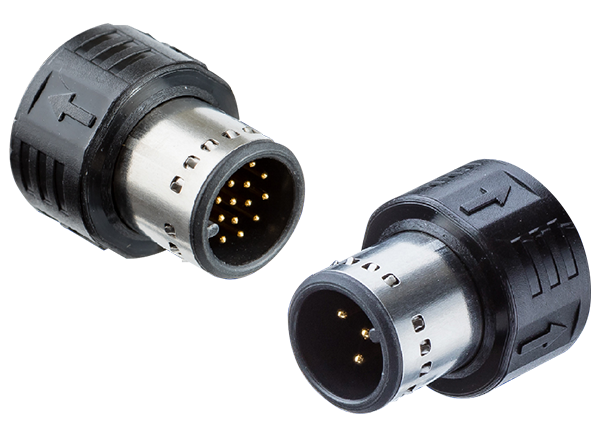

Amphenol LTW MPronto-12 Kit Circular Push-Pull Connectors

Amphenol LTW MPronto-12 Kit Circular Push-Pull Connectors are the first truly backward compatible to all M12*1.0 threaded sockets with worldwide-patented. These connectors are uniquely designed with one simple push-to-plug and pull-to-unplug. The MPronto-12 connectors operate from 2A to 4A current range and 30VAC/DC to 250VAC/DC voltage range. These push-pull connectors meet IP67, IP68, and IP69K ingress protection and are compliant with IEC 61076-2-101. The MPronto-12 kit push-pull connectors save more than 80% of installation time. These push-pull connectors feature more contact range up to 17pins than traditional M12. The MPronto-12 kit push-pull connectors cord sets are available in a straight and right angle for various M12 codes.

Features

  • 100% backward compatible to all standard female M12*1.0 sockets of any manufacturer
  • Mate with all M12*1.0 per IEC standard (In compliance to IEC 61076-2-101)
  • Meets IP67, IP68, and IP69K ingress protection
  • Saves more than 80% of installation time
  • Parts and components are available for sale enabling easy cable assembly
  • Easy, fast, secure, and reliable
  • Supports A, B, D, L, K, S, T, and X coding
  • Smaller in size than M12
  • 500 cycles
  • Salt spray up to 48hrs
  • More contact range up to 17pins than traditional M12

Specifications

Amphenol LTW MPronto-12 Kit Circular Push-Pull Connectors

Additional Resource

Related Push-Pull Connector

MPRONTO-12 M-12 Push-Pull Connectors

Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors

Spring lock designed for backward compatibility with all M12 1.0 thread socket.

Learn Moreabout Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors View Productsrelated to Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors
