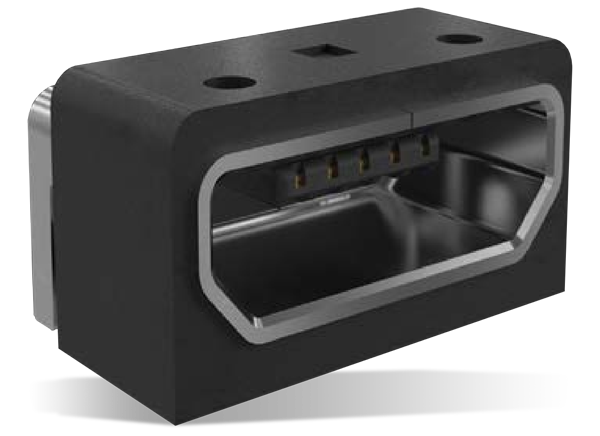

Amphenol Commercial Waterproof Micro USB 2.0 Connector

Amphenol Commercial Waterproof Micro USB 2.0 Connector features a dual-layer shell design and full metal shielding that protects against electromagnetic interference (EMI), radio-frequency interference (RFI), and electromagnetic discharge (ESD). The shell design with plastic tongue ensures high reliability and prevents damage. This Type-B connector supports fast charging with 1.8A power contacts and is capable of supporting up to 3A. The connector is equipped with 5 circuits capable of 480Mb/s high-speed transmission. Amphenol Commercial Waterproof Micro USB 2.0 Connector is RoHS compliant, halogen free, and meets IPX4 ratings. Applications include automotive, connector hubs, computers, hard disk drives, medical, and more.

Features

  • Equipped with 5 circuits compliant with USB 2.0 specifications for high-speed signal up to 480Mb/s transmission
  • Robust shell hold-down design offers improved peeling force
  • Small USB 2.0 interface saves space on PCB
  • Optimized shell structure design with full metal shielding protects against EMI, RFI, and ESD
  • Fully shielded metal shell with overmolded sealing
  • Rugged gold-plated leaf contact prevents corrosion and improves reliability
  • Optimized design structure with epoxy glue-based plastic sealing meets IPX4 ratings
  • Halogen free and RoHS compliant

Specifications

  • 100MΩ (minimum) insulation
  • Mechanical performance:
    • 35N (maximum) insertion loss
    • 10N (minimum) withdrawal force
  • 30V DC voltage
  • Signal contacts 1A and power contacts 1.8A of current
  • -40°C to +85°C operating temperature range
  • ∆T30°C (maximum) current rating/temperature rise

Applications

  • Automotive
    • Chargers
    • Car media
    • Players/hubs
  • Consumers
    • Connector hubs
    • Flash disks
    • Mobile phones/tablets
    • VR cameras
  • Data
    • Hard disk drives
    • Solid state drives
  • Industrial and instrumentation
    • Industrial computers
    • Point-of-sale (POS) systems
  • Medical
