E-Switch CS Touch Sensor Anti-Vandal Switches
E-Switch CS Touch Sensor Anti-Vandal Switches are designed for applications subjected to harsh use and attempts to damage them. The switches feature capacitive switch technology, also known as a touch sensor. The series comes with a 150mm wire and connector and is available in two-panel cutout sizes, 19mm or 22mm. Circuit functions include latching or momentary; ring or ring/power symbol lens style options with color illumination options of red, green, or blue. The CS switches provide an SPST contact arrangement, long electrical life of 50,000,000 cycles, and a 1A contact rating from 5VDC to 24VDC. Applications include white goods, security devices, commercial electronics, kiosks, electrical housewares, and medical equipment.
Features
- 19mm or 22mm panel cutouts
- Latching or momentary function options
- Ring or ring/power symbol lens options
- Red, green, or blue color options
- Capacitive switching technology (touch sensor)
- SPST contact arrangement
Applications
- White goods
- Security devices
- Commercial applications
- Kiosks
- Electrical housewares
- Medical equipment
Specifications
- 1A contact rating from 5VDC to 24VDC
- 1Ω maximum contact resistance
- 50,000,000 cycles of electrical life
- -20°C to +65°C operating temperature range
- 10mm maximum panel thickness
- 3.0Nm mounting nut torque

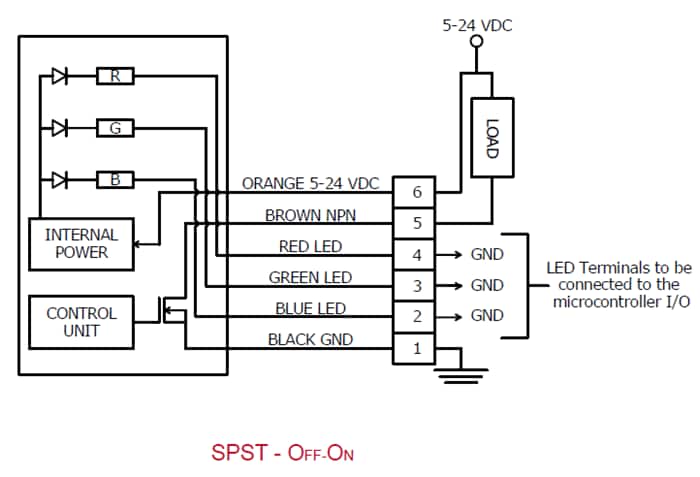

Schematic
