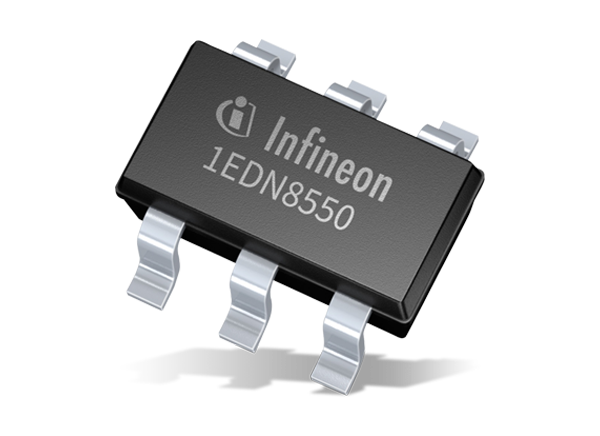

Infineon Technologies 1EDNx550 TDI EiceDRIVER™ Gate Driver ICs
Infineon 1EDNx550 EiceDRIVER™ Gate Driver ICs are single-channel, non-isolated gate-drive ICs with Truly Differential Inputs (TDI) to prevent false triggering of power MOSFETs. The logic driver state is controlled by the voltage difference between the two inputs and is completely independent of the driver’s reference (ground) potential. This design eliminates the risk of incorrect triggering and provides a significant benefit to applications with voltage differences between the driver and controller ground.
The 1EDNx550 TDI EiceDRIVER Gate Driver ICs operate with a supply voltage up to 20V, have separate low impedance source and sink outputs, offer a very large common-mode input voltage range (CMR) up to ±150V, provide a 45ns propagation delay with -7/+10ns accuracy, and are fully qualified for industrial applications according to JEDEC. The 4V and 8V UVLO (Under Voltage Lock Out) options ensure instant MOSFET protection under abnormal conditions.
Product Specifications

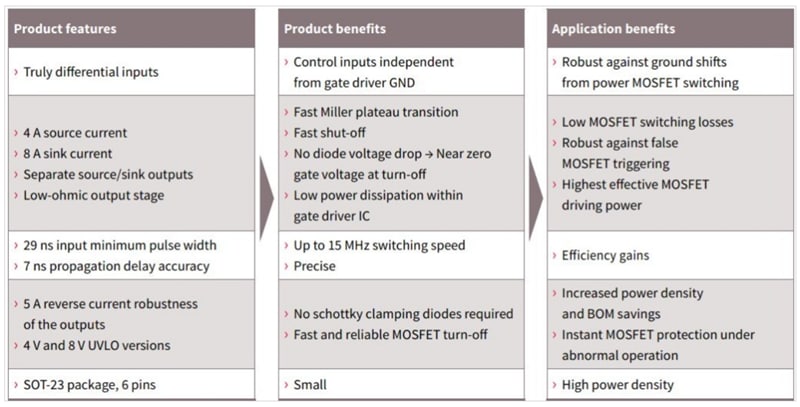

Features & Benefits
Applications
- Server
- Telecom
- DC-DC converters
- Telecom bricks
- Power tools
- Industrial SMPS
- Wireless charging
- Solar micro-inverter
Videos
Related Products
Infineon Technologies 1EDN751x/1EDN851x EiceDriver™ Gate Driver ICs
Rugged, cool and fast, 1-channel low-side 4/8A gate driver ICs.
Infineon Technologies 2EDi EiceDRIVER™ Gate Driver ICs
2-channel, functional and reinforced MOSFET isolated gate drivers for high-performance half-bridges.
Infineon Technologies CoolSiC™ 1200V SiC Trench MOSFETs
Optimized to deliver the lowest losses in the application and the highest reliability in operation.
Infineon Technologies EiceDRIVER™ Isolated & Non-Isolated Gate Drivers
Gives the optimized low and high-voltage gate driver solutions for MOSFETs, IGBTs, and IGBT modules.
Infineon Technologies Washer/Dryer Solutions
Comprehensive portfolio of products for use in washers and dryers in a household environment.
Infineon Technologies EiceDRIVER™ 1200V Half Bridge Gate Drivers
High-side/low-side gate driver ICs with integrated bootstrap diode and Overcurrent Protection (OCP).
Infineon Technologies REF_3K3W_HFHD_PSU High Power Density PSU
3.3kW, 95W/in³, and 500kHz PSU that targets specifications for server and data center applications.
Development Tools
Infineon Technologies 1EDN Driver Evaluation Kits
Designed for EiceDRIVER™ single-channel non-isolated gate driver IC with truly differential inputs.
Infineon Technologies EVAL_BIDI_HB_1EDN7550B Evaluation Board
Designed to easily demonstrate the functionality & versatility of the 1EDNx550B EiceDRIVER™ family.
Infineon Technologies KIT_LGMB_BOM004 Master Motherboard
Serves as a supporting board for the LVD scalable power demo board platform.

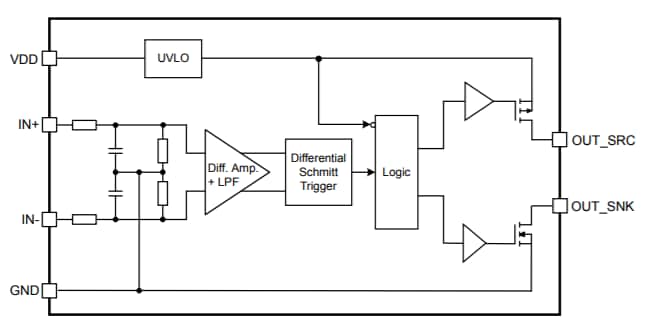

Block Diagram
