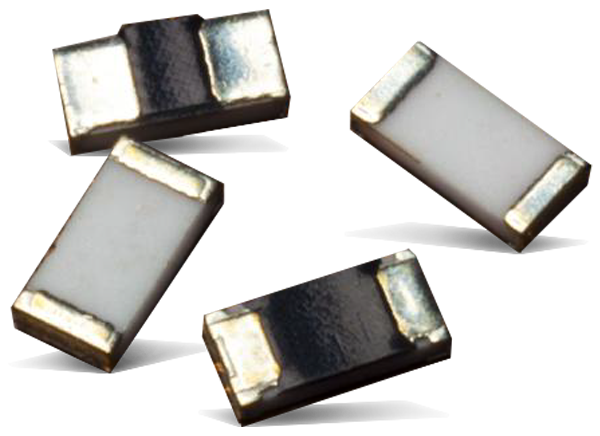

KOA Speer RN73R Metal Film Flat Chip Resistors
KOA Speer RN73R Metal Film Flat Chip Resistors are designed to meet the demands of high-heat and high-moisture applications. These KOA Speer resistors provide improved electrolytic corrosion resistance and high stability compared to existing RN73 thin film resistors. RN73R offers high heat tolerance with a -55°C to +155°C operating temperature range. The resistors feature a rated ambient temperature of +85°C and improved moisture tolerance of 85% for 1000 hours at 85°C.
Features
- SMD metal film resistors
- Low current noise
- Improved moisture resistance by high humidity protective coating
- Suitable for control circuits in industrial equipments
- Suitabled for flow and reflow solderings
- Meets EU-RoHS requirements
Applications
- Medical
- Industrial
Specifications
- Power rating
- 0.063W (0402)
- 0.1W (0603)
- 0.125W (0805)
- 0.25W (1206)
- 10-1.5MΩ resistance range
- 85°C rated ambient temperature
- ±5, ±10, ±25, ±50, ±100ppm/°C temperature coeffcient of resistance (TCR)
- ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1% tolerance
- 85°C, 85% for 1000 hours moisture resistance
- -55°C to +155°C operating temperature range
Additional Resource

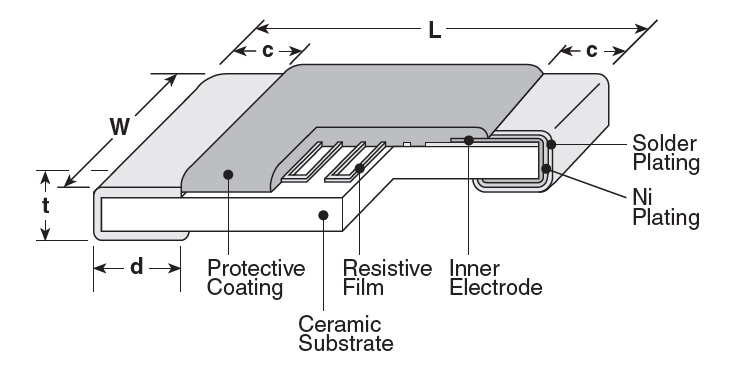

Dimensions and Construction
Published: 2019-04-10
| Updated: 2023-04-28
