KYOCERA AVX CM SMD Multilayer Ceramic Chip Capacitors (MLCCs)

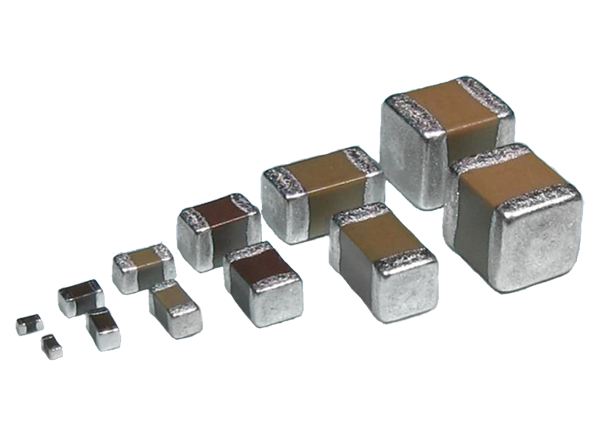

KYOCERA AVX CM SMD Multilayer Ceramic Chip Capacitors (MLCCs) are configured for a wide variety of temperature characteristics, rated voltages, and package styles to meet specific configurational requirements. These MLCCs feature nickel barrier/tin terminations and are highly reliable due to a monolithic structure of high-purity, superfine uniform ceramics and integral internal electrodes. The general-purpose CM MLCCs offer a wide 1pF to 47µF capacitance range with high dielectric constants. The KYOCERA AVX CM SMD Multilayer Ceramic Chip Capacitors are ideal for various applications including commercial and industrial equipment.
Features
- High dielectric constants
- Compact range
- General and high-reliability types
- Surface mount
- RoHS compliant
Applications
- Commercial equipment
- Industrial equipment
Specifications
- 1pF to 47µF capacitance range
- 2.5VDC to 50VDC rating range
- 01005, 0201, 0402, 0603, 0805, 1206, and 1210 case sizes available
- C0G (NP0), CH, X5R, X6S, X6T, X7R, X7S, and X7T dielectrics available
- >500MΩ or >10,000MΩ insulation resistance
- Operating temperature ranges
- -55°C to +85°C for X5R
- -55°C to +105°C for X6S and X6T
- -55°C to +125°C for C0G (NP0), CH, X7R, X7S, and X7T
