Littelfuse 828 Series High Voltage Cartridge Fuses

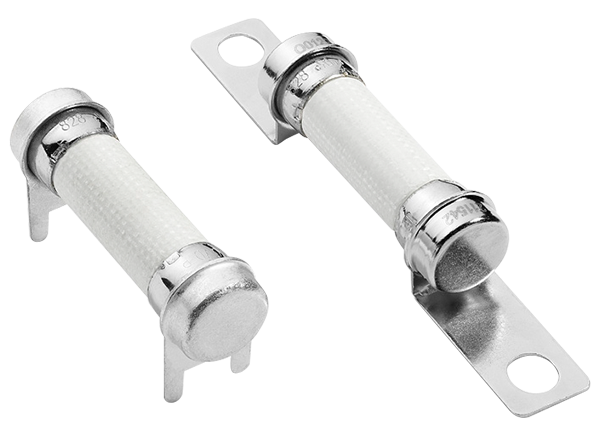

Littelfuse 828 Series High Voltage Cartridge Fuses are compact fuses designed for automotive electronics. These fuses feature a high voltage rating of 1000VDC and a high breaking capacity. 828 series fuses, such as onboard chargers and power distribution units, are suitable for automotive applications. Littelfuse 828 Series High Voltage Cartridge Fuses are available in both thru-hole and bolt-down configurations.
Features
- Thru-hole and bolt-down configurations
- RoHS compliant
- Lead-free
- Small size
- High voltage
- High breaking capacity
Applications
- On-board chargers
- Power distribution units
Specifications
- 10A - 30A current range
- 1000VDC max voltage range
- -55°C to +125°C operating temperature
- Glass fiber body
- Tin plated copper alloy cap
Published: 2021-10-26
| Updated: 2023-08-02
