M5Stack Atom DTU LoRaWAN Kit (ASR6501)
M5Stack Atom DTU LoRaWAN Kit (ASR6501) comprises a programmable Data Transmission Unit (DTU) suitable for 915MHz frequency. The module adopts the ASR6501 scheme that supports long-distance communication, ultra-low power consumption, and high sensitivity. The kit includes the Atom DTU LoRaWAN915 module, SMA antenna, SMA red cap, M2 hexagon wrench, M2x16 screws, and 3.96-4P terminal. The ATOM DTU series adopts a more open architecture design and superior anti-interference ability to work normally in complex interference environments. Typical applications include automatic remote meter reading, intelligent traffic intelligent parking lot, remote irrigation, and environmental monitoring.

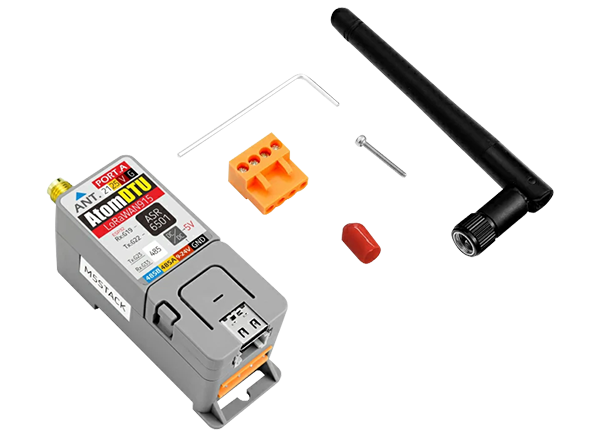

Kit Contents
- 1x ATOM DTU LoRaWAN915
- 1x SMA antenna
- 1x SMA red cap
- 1x M2 hexagon wrench
- 1x M2x16 screw
- 1x 3.96-4P terminal
Features
- ASR6501 LoRa platform
- Supports US915:
- 915MHz operating frequency
- Serial communication:
- UART 115200bps (AT command)
- Modbus Master/slave
- With super anti-interference ability, able to work normally in complex interference environments
- RS485 communication interface:
- 12V input interface, internal integrated DC-DC step-down 5V
- Strong signal access capability
- External antenna:
- SMA antenna interface
- Grove expansion interfaces:
- I²C x1
- Custom x1
- Self-contained rail clamping
Applications
- Automatic remote meter reading
- Intelligent traffic intelligent parking lot
- Remote irrigation
- Environmental monitoring
