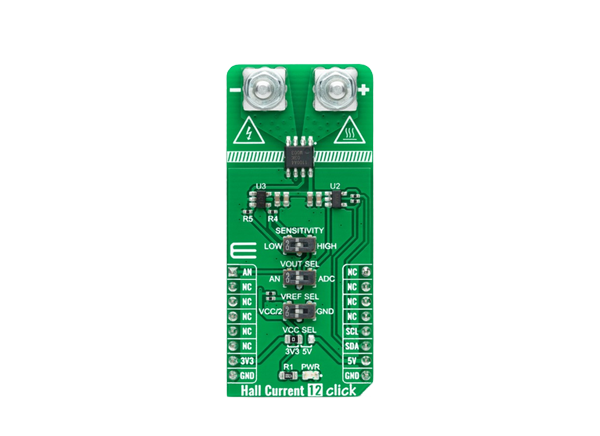

Mikroe Hall Current 12 Click
Mikroe Hall Current 12 Click features the Texas Instruments TMCS1100 galvanically isolated Hall-effect current sensor. It's capable of DC or AC current measurement with high accuracy, excellent linearity, and temperature stability. The device enables the lowest drift, <1% full-scale error, and highest accuracy over time and temperature. It also provides a reliable 600V lifetime working voltage and 3kVRMS isolation between the current path and circuitry with uni/bidirectional current sensing.
Features

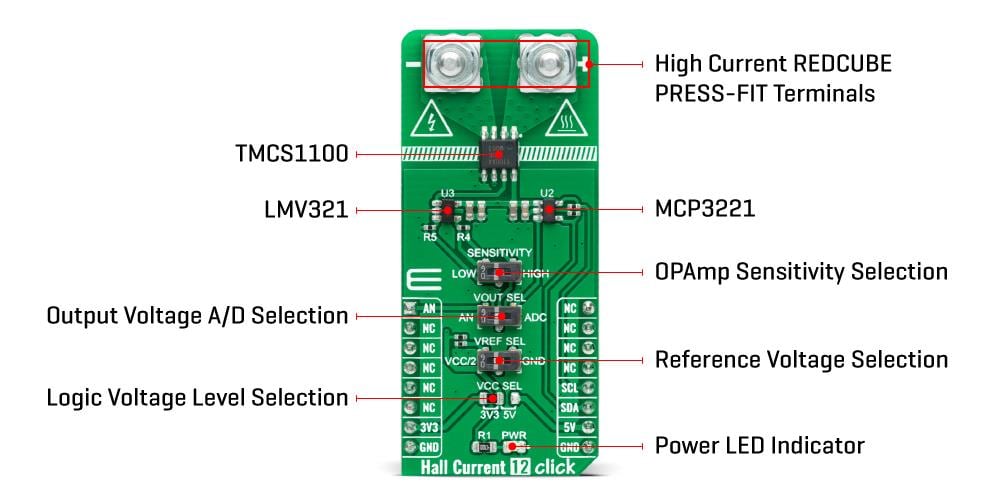

- On-board modules
- Texas Instruments TMCS1100 galvanically isolated Hall-effect current sensor capable of DC or AC current measurement
- High accuracy and precision
- Excellent linearity, and temperature stability
- 3kVRMS isolation rating
- Robust 600V lifetime working voltage
- Bidirectional and unidirectional current sensing
- Analog, I2C interface
- mikroBUS compatibility
- L (57.15mm x 25.4mm) click board size
- 3.3V or 5V input voltage
Applications
- AC or DC current-sensing in industrial and commercial systems
- Motor and load control
- Power factor correction
- Overcurrent protection
Overview
