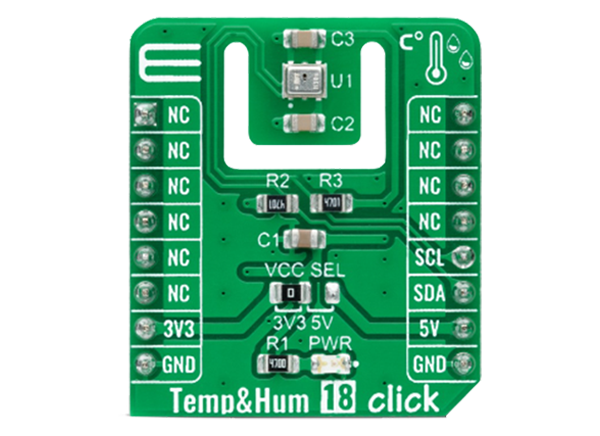

Mikroe Temp&Hum 18 Click

Mikroe Temp&Hum 18 Click is a compact add-on board that implements temperature and humidity sensing solutions. The Temp&Hum 18 Click integrates the Renesas HS3003, a highly accurate, fully calibrated relative humidity, and temperature sensor. The Temp&Hum 18 offers proprietary sensor-level protection, ensuring high reliability and long-term stability. Embedded calibration and temperature-compensation logic provides fully corrected RH and temperature values via standard I2C output. No user calibration of the output data is required.

The high accuracy, fast measurement response time, and long-term stability result in an ideal match for various temperature and humidity-related applications. Additionally, the Temp&Hum 18 Click is suitable for a vast number of applications ranging from portable devices to products designed for harsh environments.

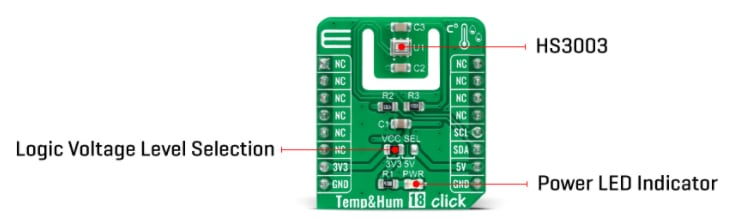

  • On-board modules
    • Renesas HS3003 highly accurate, fully calibrated relative humidity and temperature sensor
  • Proprietary sensor-level protection
  • High reliability
  • Long-term stability
  • I2C interface
  • mikroBUS compatibility
  • S (28.6mm x 25.4mm) Click board size
  • 3.3V or 5V Input voltage


  • Various temperature and humidity-related applications
  • Portable devices
  • Products designed for harsh environments


Mikroe Temp&Hum 18 Click
Published: 2021-11-29 | Updated: 2022-03-11
