Xsens / Movella MTi-680-DK/MTi-680S-DK Development Kits
Xsens / Movella MTi-680-DK and MTi-680S-DK Development Kits are designed to evaluate the features of the MTi-680 RTK GNSS/INS module. The kits contain an MTi-680 module, development kit daughter card, RTK/GNSS card, RTK GNSS, antenna, MTi flat cable, and USB cable. The MTi-680S-DK kit is powered by Septentrio Mosaic X5 to bring defense and autonomous machines/robots interference-resilient navigation with minimal integration effort.
Applications
- Industrial
- Autonomous vehicles - trucks, pods, shuttles, and cars
- Robotics - autonomous mobile robots (AMRs) and drones
- Antennas, cameras, radars, and LIDAR
- Coastal surface vessels (marine)

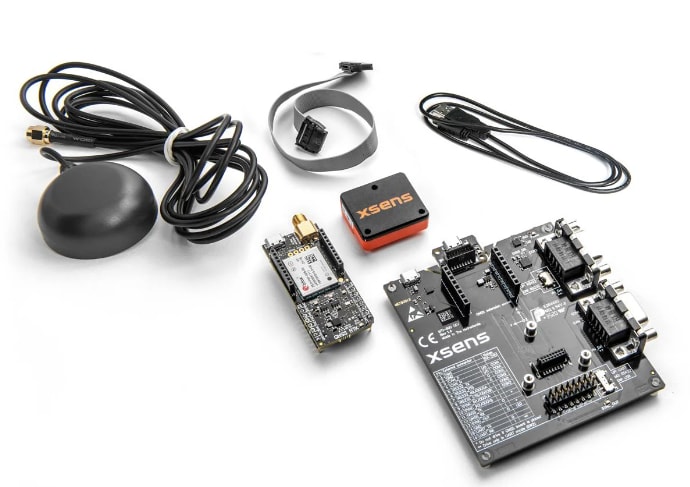

Kit Contents
- MTi-680 module
- Development kit daughter card
- RTK/GNSS card
- RTK GNSS antenna
- MTi flat cable
- USB cable
Board Layout (Main)
Board Layout (Daughter Card)
