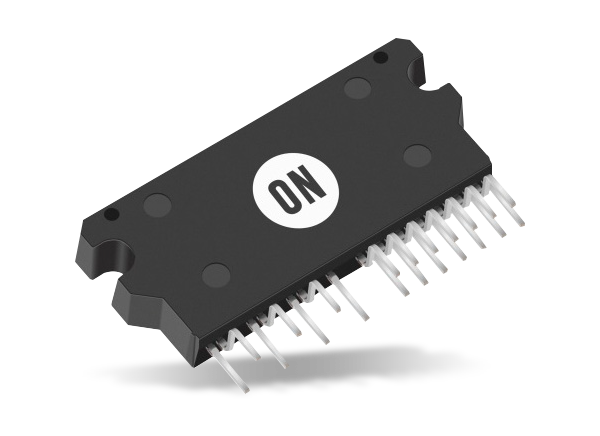

onsemi NFAx 600V Intelligent Power Modules (IPM)

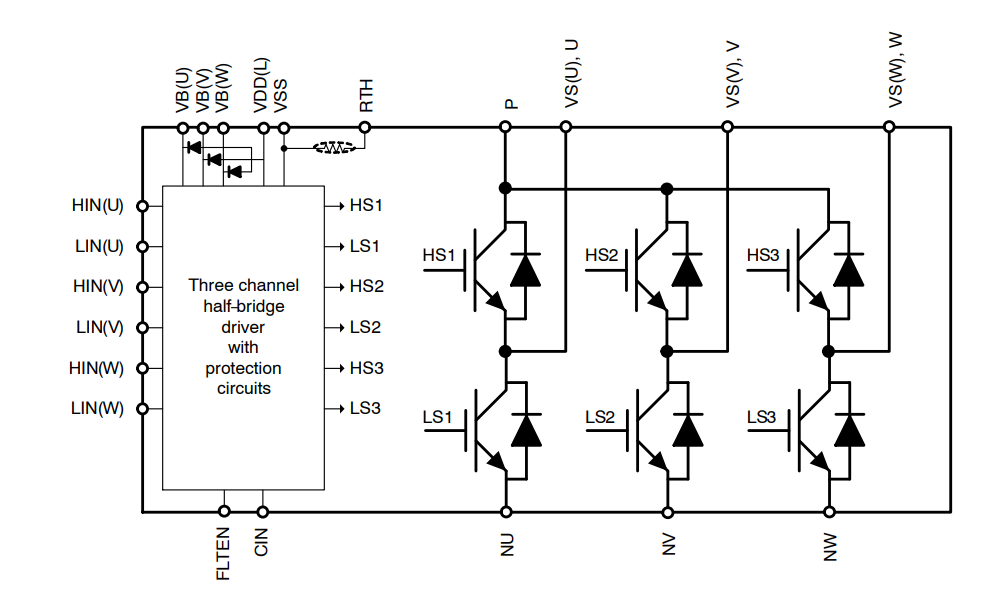

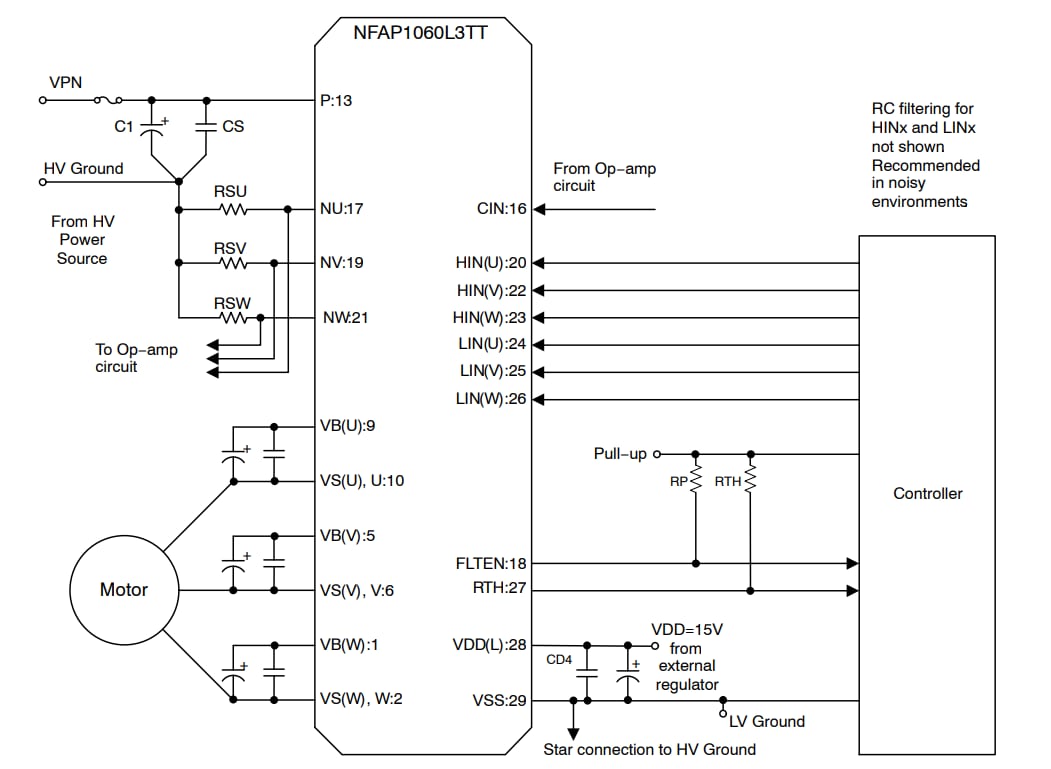

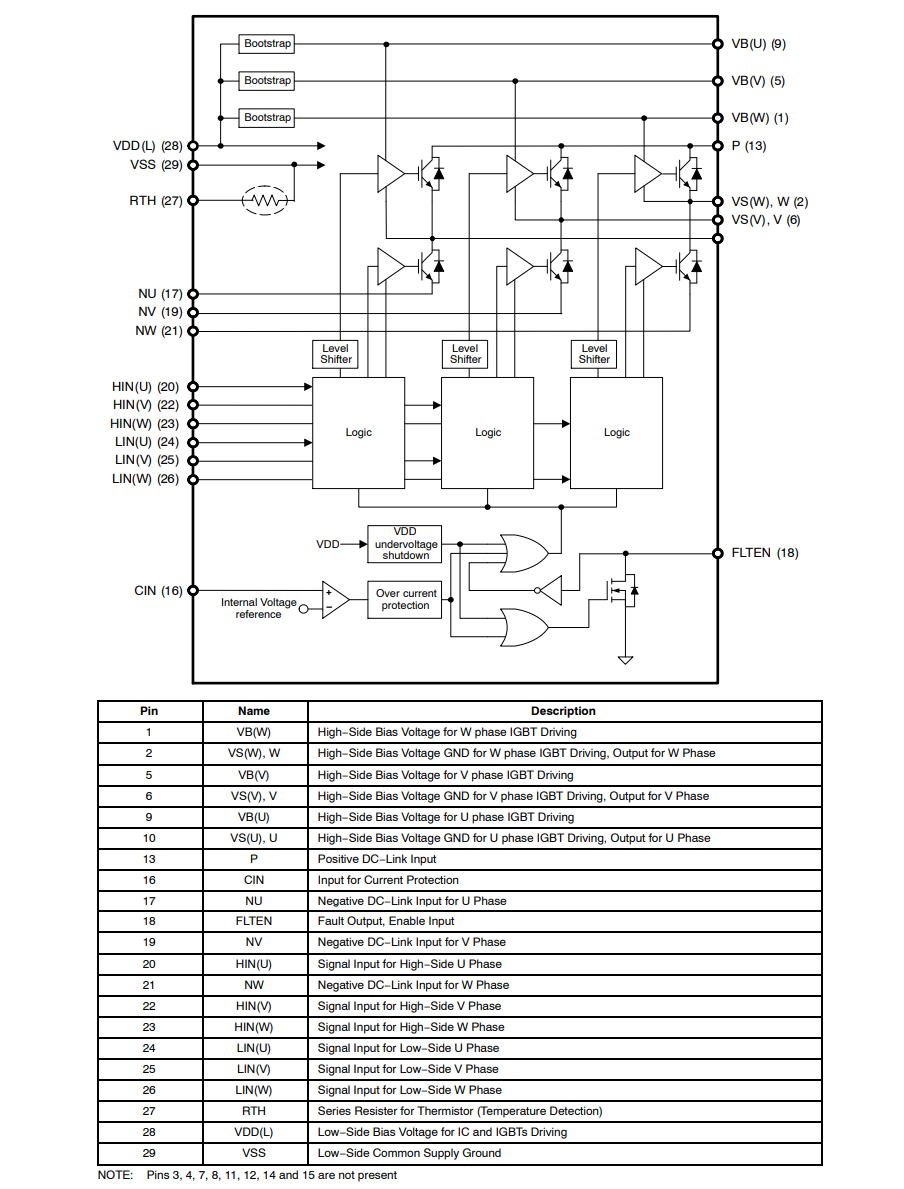

onsemi NFAx 600V Intelligent Power Modules (IPM) are fully integrated inverter power stages. The NFAx 600V modules consist of a high-voltage driver, six IGBTs, and a thermistor, suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors, and AC asynchronous motors. These 600V modules have a full range of protection functions, including cross-conduction protection, external shutdown, and under-voltage lockout. The over-current protection level can be set using an internal comparator and reference connected to the over-current protection circuit.

Features

Three-phase 10A/600V IGBT module with integrated drivers
- 5A/600V (NFAP0560R4TT)
Compact 44mm x 20.9mm single in-line package
Built-in under-voltage protection
Cross-conduction protection
