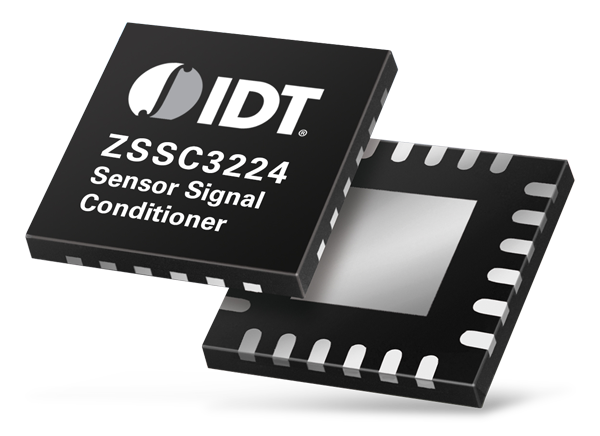

Renesas Electronics ZSSC3224 Sensor Signal Conditioner IC

Renesas Electronics ZSSC3224 Sensor Signal Conditioner (SSC) IC is designed for high-accuracy amplification and analog-to-digital conversion of an input signal. The ZSSC3224 IC is also designed to correct resistive bridge or absolute voltage sensors for high-resolution sensor module applications. This IC also provides a corrected temperature O/P measured with an internal sensor. The measured and corrected sensor values are provided at the digital output pins, which can be configured as I²C (≤3.4MHz) or SPI (≤20MHz).

The ZSSC3224 IC is programmed easily via the serial interface, which is used for PC-controlled programming of calibration coefficients in memory. The 24-bit SSC IC is a highly integrated CMOS design, excellent for low-voltage and low-power battery applications. Typical applications include fan control, barometric altitude measurement, weather forecast, and pressure measurements.

Features

Flexible, programmable analog front-end design up to 24-bit Analog-to-Digital Converter (ADC)
6.6 to 216 (linear) fully programmable gain amplifier for optimizing sensor signals
18-bit internal auto-compensated temperature sensor
Digital compensation of individual sensor offset
1st and 2nd order digital compensation sensor gain, temperature gain, and offset drift
Programmable interrupt operation

High-speed sensing (e.g: 18-bit conditioned sensor signal measurement rate >200s-1)
±0.10% Full-Scale Output (FSO) typical sensor elements accuracy
-40°C to +85°C operating temperature
<0.7mK/LSB temperature resolution
20nA sleep mode current
~1.0mA operating mode current
