ROHM Semiconductor SH8M Dual Nch+Pch Power MOSFET
ROHM Semiconductor SH8M Dual Nch+Pch Power MOSFET includes two 60V MOSFETs in a small, surface-mount SOP8 package with eight terminals. If offers low on-resistance, ±6.5A/±7A drain current ID, 32mΩ to 33mΩ RDS(on) maximum, and 2W power dissipation. ROHM Semiconductor SH8M Dual Nch+Pch Power MOSFET utilizes Pb-free plating and is halogen free as well as RoHS compliant. The SH8M is Ideal for switching applications.
Features
- Dual Nch+Pch polarity
- 8 terminals
- Low on-resistance
- Small surface-mount package (SOP8)
- Ideal for switching applications
- Pb-free plating
- RoHS compliant
- Halogen free
Specifications
- -60V to 60V drain source voltage (VDSS)
- 32mΩ to 33mΩ RDS(on) maximum
- ±6.5A/±7A drain current ID
- 2W power dissipation

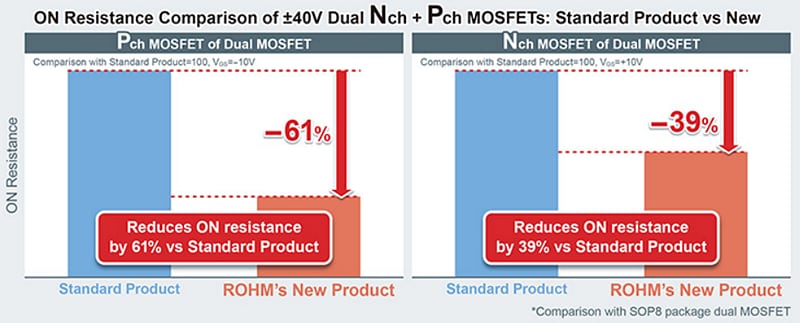

Comparison Chart
Smaller Size & Component Count
Solution Examples
• QH8MC5 (±60V Nch+Pch Dual MOSFET) + BD63001AMUV (3-Phase Brushless Motor Pre-Driver IC)
• SH8KB6 (+40V Nch+Nch Dual MOSFET) + BM62300MUV (3-Phase Brushless Pre-Driver IC)
• SH8KB6 (+40V Nch+Nch Dual MOSFET) + BD63002AMUV (3-Phase Brushless Pre-Driver IC)
