Seeed Studio SenseCAP Wireless CO2 Sensor
Seeed Studio SenseCAP Wireless CO2 Sensor - LoRaWAN AU915MHz is designed to measure the levels of CO2 emission in the atmosphere from 0 to 40000ppm range. This sensor comes with an NDIR CO2 sensor and a custom battery. The wireless CO2 sensor is optimized for outdoor use cases that need reliable data collected over years. The device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission. This sensor features ultra-wide distance data transmission, low power consumption, and provides a variety of flexible cloud services with open API for further development. The wireless CO2 sensor operates from 0°C to 50°C temperature range. Typical applications include smart building and industrial control, smart agriculture/precision agriculture, and environmental monitoring.
Features
- Measure the levels of CO2 emission from 0 to 40000ppm range
- Support LoRaWAN protocol Class A
- NDIR CO2 sensor technology
- Dual-channel detection for superior stability
- Ultra-wide-distance transmission:
- 10km in line of sight scenes and 2km in urban scenes
- Battery life ≥ 1.5 years
- Rapid installation and deployment
- Industrial design supports :
- 0°C to 50°C extended operating temperature range
- Low power consumption
- Provides a variety of flexible cloud services with open API for further development
Applications
- Smart agriculture/ precision agriculture
- Smart building and industrial control
- Environmental monitoring
- Other wireless sensing applications

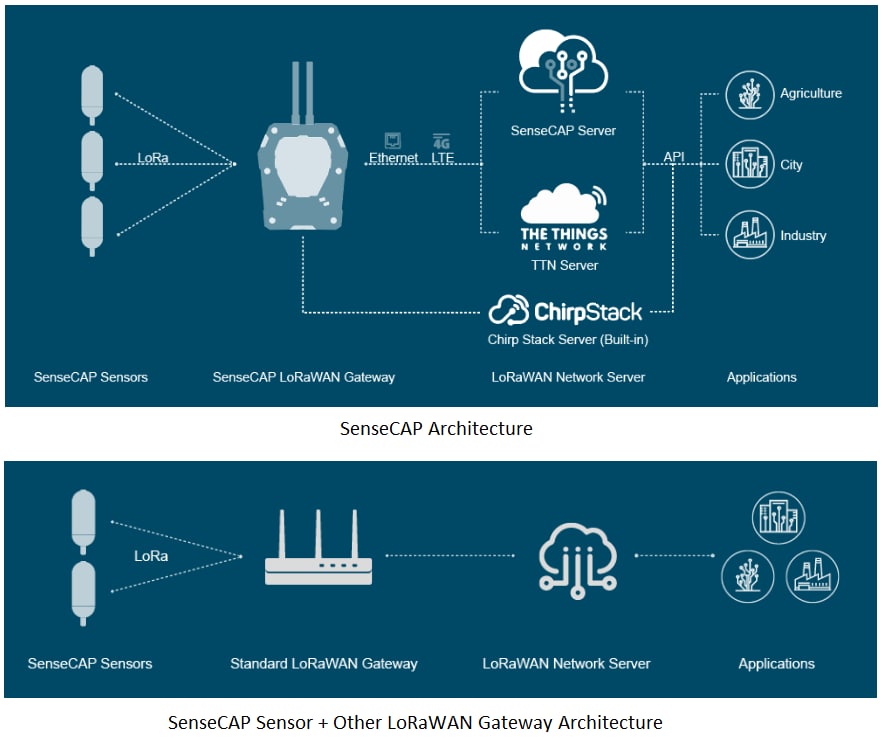

SENSECAP ARCHITECTURE
