Sensirion SDP8xx-Digital & Analog Pressure Sensors
Sensirion SDP8xx-Digital and Analog Pressure Sensors are differential pressure sensors designed for high-volume applications that measure the pressure of air and non-aggressive gases with superb accuracy and no offset drift. The sensors cover a pressure range of up to ±500 Pa (±2 inch H2O / ±5mbar) and deliver outstanding accuracy.
The SDP800 Series digital differential pressure sensors feature a digital 2-wire interface, which makes it easy to connect directly to a microprocessor. The sensors with analog output feature an analog ratiometric voltage output that is configurable to linear or square root by a separate pin.
The sensors' performance is based on Sensirion's patented CMOSens® sensor technology. Sensirion's CMOSens combines the sensor element, signal processing, digital calibration, and analog output on a small CMOS chip. The differential pressure is measured by a thermal sensor element using flow-through technology. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.
Features
- No offset, no zero-point drift, hysteresis free
- Pressure range of up to ±500Pa (±2 inch H2O / ±5mbar)
- Extended feature set - smart averaging
- Fully calibrated and temperature compensated (-20°C to +85°C)
- Outstanding long-term stability
- Excellent accuracy and repeatability (even below 1Pa)
- Best signal-to-noise ratio
- For air and non-aggressive gases
- Suited for standard wave soldering
Applications
- HVAC (heating, ventilation, air conditioning)
- Gas boilers, pellet stoves and fuel cells
- Filter Monitoring
- VAV control
- Heat recovery
- Medical (e.g. respiratory devices)
Videos
Selection Chart
Development Tools
Sensirion SEK-SDP8xx Differential Pressure Evaluation Kit
Provides an easy-to-use and cost-effective demonstration platform for the SDP8xx Pressure Sensors.
Associated Product
Sensirion SDP8xx/SDP6xx/SDP5xx Connecting Cap
Suited for applications where the sensor is not PCB-mounted, but connected with a cable.

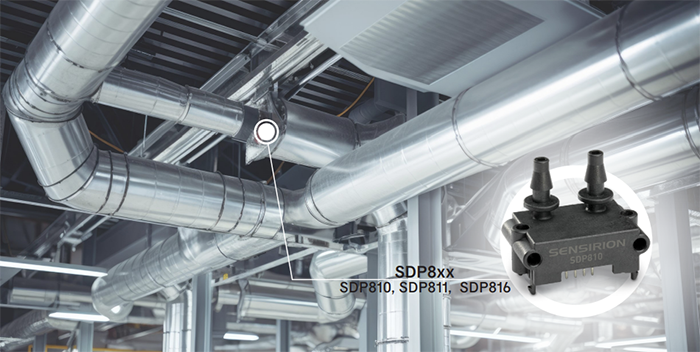

COMMERCIAL VENTILATION with VAV
Commercial ventilation with variable air volume controller (VAV) - Building airflow control solutions
Variable air volume (VAV) is the HVAC system that optimizes air conditioning of the indoor space. The VAV system is engineered to ensure air distribution across a building’s entire ventilation network, using an SDP sensor to measure airflow and dynamically adjust dampers for optimal air delivery. VAV enables increased comfort and +30% energy savings compared with traditional constant air volume systems. A highly-accurate and stable differential pressure sensor is key to secure the return on investment with energy efficiency gains.
