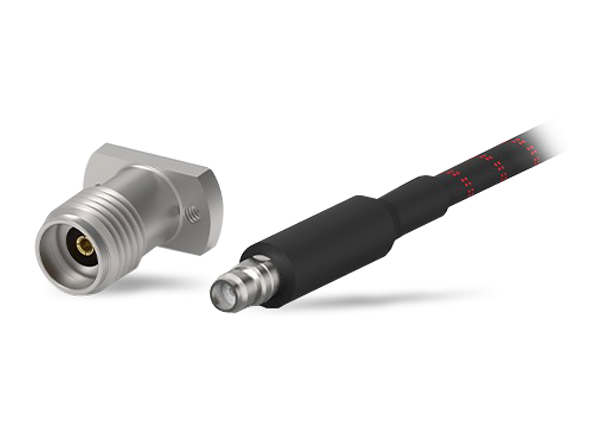

TE Connectivity’s High-Frequency RF Connectors and Testing Cable Assemblies support up to 67GHz while providing reliable, high performance for demanding applications. The RF series offers extremely low insertion loss and Voltage Standing Wave Ratio (VSWR). The connectors feature a 1.85mm, 2.4mm, or OS-2.9 (2.92mm) RF interface with operating frequencies of 40GHz, 50GHz, or 67GHz. These components offer brass or stainless steel body material, passivated or plated body finish, and board-mount, fixing screw, or panel-mount styles. The cable assemblies are designed with an SMA straight plug or standard size plug, in fluorinated ethylene propylene (FEP) or polyurethane (PUR) jacket material. Available wire sizes include 24AWG, 21AWG, and 19AWG.
TE's High-Frequency RF Connectors and Testing Cable Assemblies are compatible with other RF vendors. Ideal applications include wireless, telecommunications, consumer devices, test and measurement, military communications, and more.
40GHz, 50GHz, or 67GHz operating frequencies
1.85mm, 2.4mm, or OS-2.9 (2.92mm) RF interface
Board mount, fixing screw, or panel mount
Edge, straight, or vertical PCB mount orientation
Brass or stainless steel body material
Passivated or plated body finish
SMA straight plug or standard size plug
24AWG, 21AWG, or 19AWG wire sizes
Fluorinated ethylene propylene (FEP) or polyurethane (PUR) jacket material
