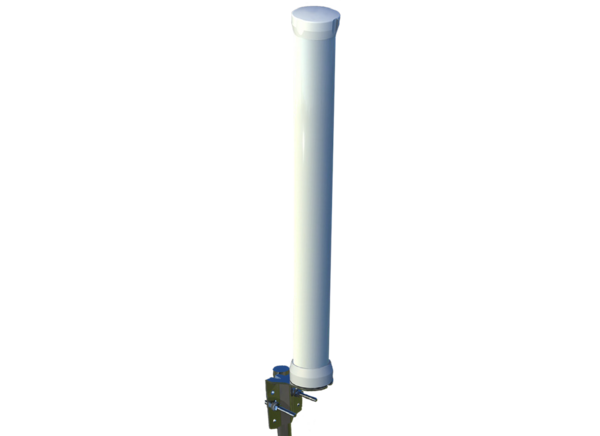

TE Connectivity RP20 Multi-Port MIMO FWA Omnidirectional Antennas

TE Connectivity's (TE) RP20 Multi-Port MIMO Omnidirectional Antennas are 5G/cellular 2x2 MIMO omnidirectional antennas for Fixed Wireless Access (FWA) applications. RP20 antennas are available in 2- and 3-port variants, with the 3-port models featuring GNSS coverage. These antennas cover a frequency range of 617MHz to 6000MHz and support all major global 5G Cellular bands. Suitable for both indoor and outdoor applications, these antennas can be mounted on a wall or mast (pole). TE RP20 Multi-Port MIMO Omnidirectional Antennas feature integrated pigtails with a choice of terminated connectors and are supplied with brackets and mounting hardware.


  • Global LTE and 5G coverage
  • Operates in both CBRS as well as unlicensed 5GHz to 6GHz
  • Consistent omnidirectional patterns across all bands, providing stable reception
  • Integrated pigtails with a choice of terminated connectors
  • Supplied with brackets and mounting hardware
  • 2- and 3-port variants available


  • Outdoor and indoor
  • FWA
  • Failover support
  • Industrial IoT device connections
  • Private networks


  • 617MHz to 6000MHz operating frequency
  • 10W maximum input power
  • 50Ω nominal impedance
  • Up to 78% efficiency
  • Linear, vertical polarization
  • 360°, omnidirectional azimuth beamwidth
  • 554mm x Ø74mm dimensions
  • -40°C to +85°C operating temperature range
Published: 2023-06-07 | Updated: 2023-06-16
