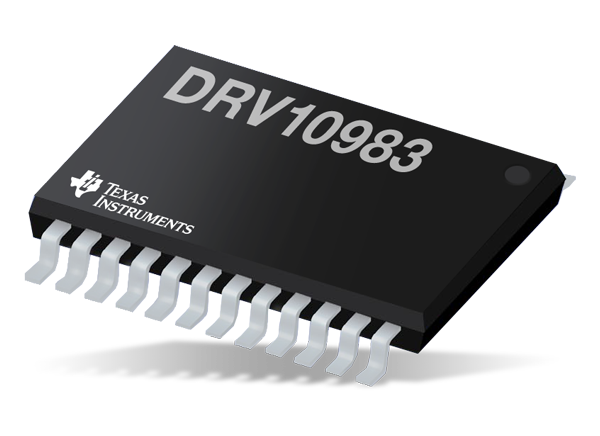

Texas Instruments DRV10983/DRV10983-Q1 Sensorless BLDC Motor Driver

Texas Instruments DRV10983/DRV10983-Q1 Three-Phase Sensorless BLDC Motor Driver is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 2A. The device is specifically designed for cost-sensitive, low-noise/low external component count applications. The DRV10983/DRV10983-Q1 uses a proprietary sensorless control scheme to provide continuous sinusoidal drive, which significantly reduces the pure tone acoustics that typically occur as a result of commutation. The interface to the device is designed to be simple and flexible. The motor can be controlled directly through PWM, analog, or I²C inputs. Motor speed feedback is available through either the FG pin or I²C. The DRV10983-Q1 devices are AEC-Q100 qualified for automotive applications.

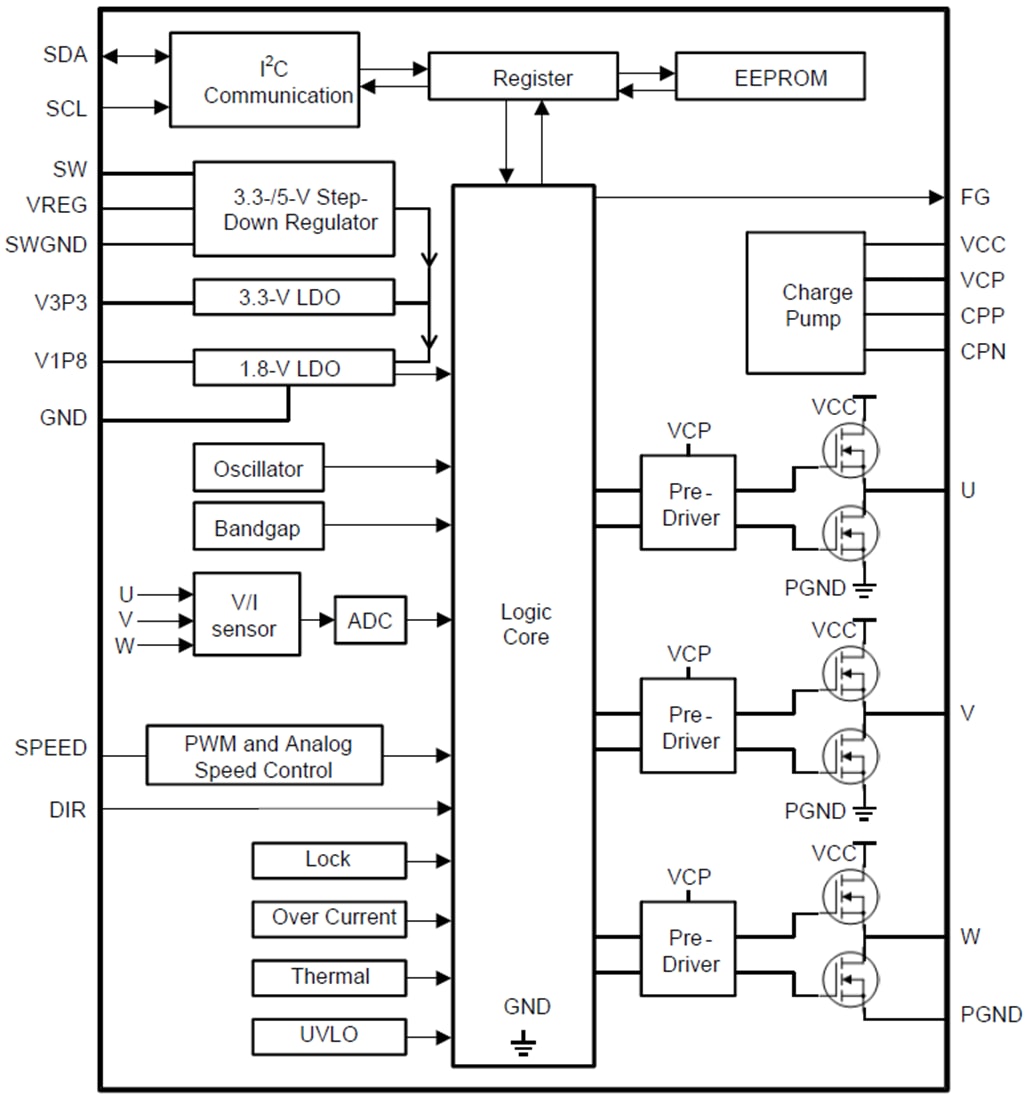

Features

Input Voltage Range: 8 to 30V
Total Driver H + L R_DSon: 250mΩ
Drive Current: 2A Continuous (3A Peak)
Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme
Continuous Sinusoidal 180° Commutation
No External Sense Resistor Required
For Flexibility User may Include External Sense Resistor to Monitor Power Delivered to the Motor
Flexible User Interface Options
- I²C Interface: Access Registers for Command and Feedback
- Dedicated SPEED Pin: Accepts Either Analog or PWM Input
- Dedicated FG Pin: Provides TACH Feedback
- Spin Up Profile can be Customized With EEPROM
- Forward/Reverse Control With DIR Pin

Integrated Buck/Linear Converter to Efficiently Provide Voltage (5V/3.3V) for Internal and External Circuits
Supply Current 3.5mA With Standby Version (DRV10983)
Overcurrent Protection
Lock Detection
Voltage Surge Protection
UVLO Protection
Thermal Shutdown Protection
Thermally Enhanced 24-Pin HTSSOP
