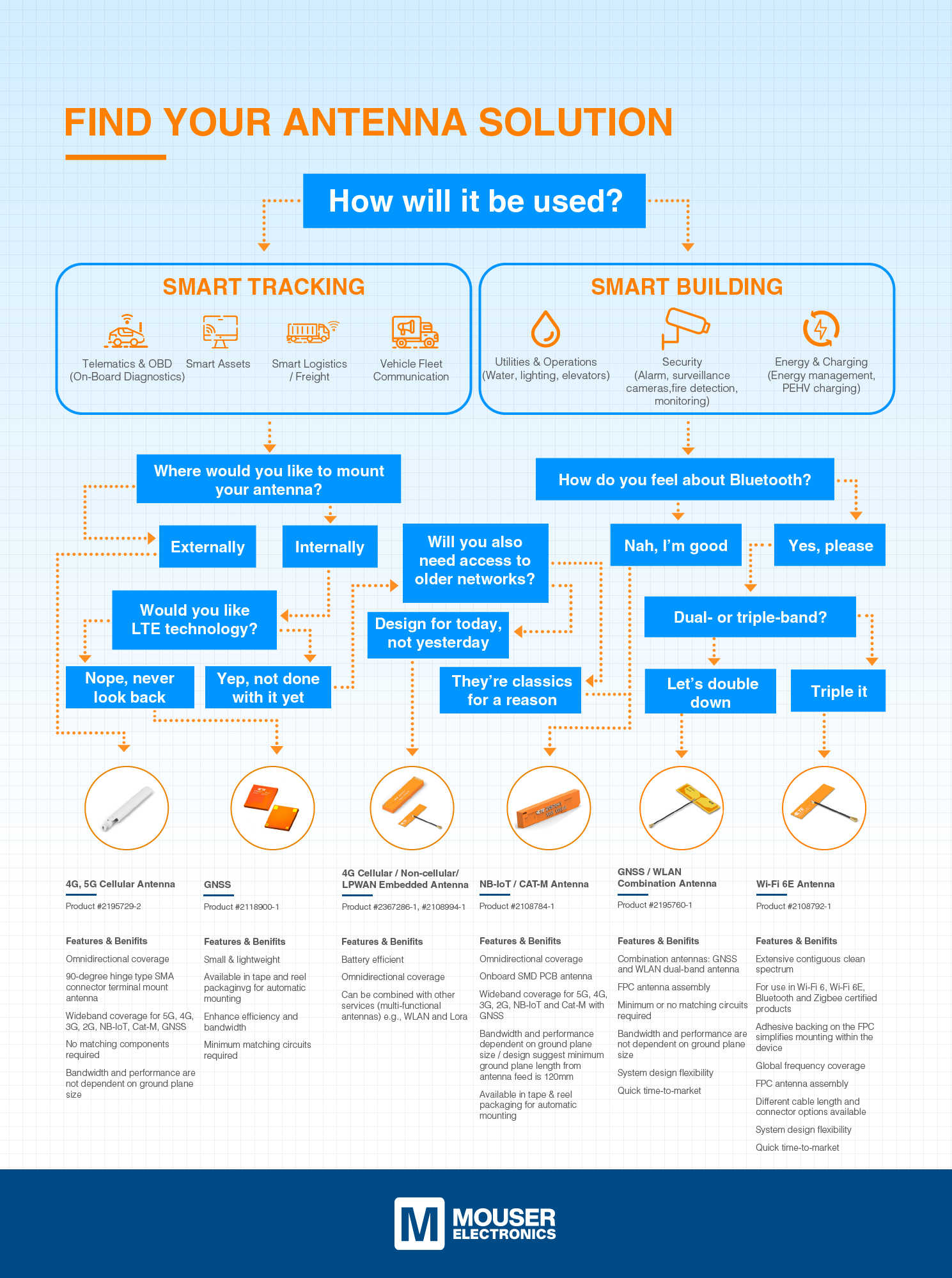

TE Connectivity Antenna Solution Infographic
Find your antenna solution
Flow chart with text linking use cases with products
How will it be used?
Smart Tracking:
- Telematics & OBD (on-board diagnostics)
- Smart Assets
- Smart logistics/Freight
- Vehicle Fleet Communication
Smart Building
- Utilities & Operations (Water, lighting, elevators)
- Security (Alarm, surveillance cameras, fire detection, monitoring)
- Energy & Charging (Energy management, PEHV charging)
4G, 5G Cellular Antenna
- Omnidirectional coverage
- 90-degree hinge type SMA connector terminal mount antenna
- Wideband coverage for 5G, 4G, 3G, 2G NB-IoT, Cat-M, GNSS
- No matching components required
- Bandwidth and performance are not dependent on ground plane size
GNSS:
- Small & lightweight
- Available in tape and reel packaging for automatic mounting
- Enhance efficiency and bandwidth
- Minimum matching circuits required
4G Cellular / Non-cellular/LPWAN Embedded Antenna
- Battery efficient
- Omnidirectional coverage
- Can be combined with other services (multi-functional antennas) e.g., WLAN and Lora
NB-IoT / CAT-M Antenna
- Omnidirectional coverage
- Onboard SMD PCB antenna
- Wideband coverage for 5G, 4G, 3G, 2G, NB-IoT, and Cat-M with GNSS
- Bandwidth and performance dependent on ground plane size / design suggest minimum ground plane length from antenna feed is 120mm
- Available in tape & reel packaging for automatic mounting
GNSS / WLAN Combination Antenna
- Combination antennas: GNSS and WLAN dual-band antenna
- FPC antenna assembly
- Minimum matching circuits required
- Bandwidth and performance are not dependent on ground plane size
- System design flexibility
- Quick time-to-market
Wi-Fi 6E Antenna
- Extensive contiguous clean spectrum
- For use in Wi-Fi 6, Wi-Fi 6E, Bluetooth and Zigbee certified products
- Adhesive backing on the FPC simplifies mounting within the device
- Global frequency coverage
- FPC antenna assembly
- Different cable length and connector options available
- System design flexibility
- Quick time-to-market
